W0048-T-008-010-L-S4 - Datasheet
MBA
Category Information

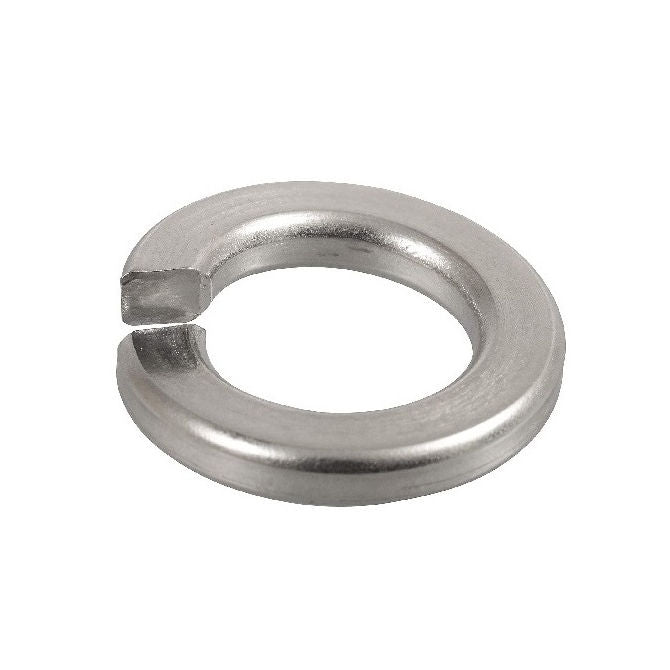

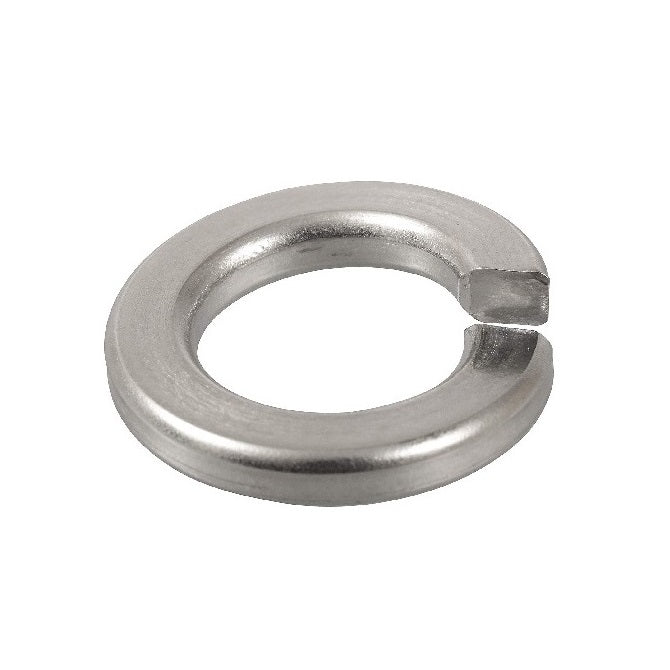

Washers - Lock - Split - Stainless SteelStainless Steel Split Lock Washers. Split type. 304 stainless steel selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Inside Diameter
:
4.76
mm
+ 0.4 / - 0.0
(Equiv. 0.187 in.) - Outside Diameter
8.2
mm
(Equiv. 0.323 in.) - Thickness
1.00
mm
(Equiv. 0.039 in.) - Info 304 Stainless
- Info 3/16, 10 (UNC/UNF)
- Info ANSI B18.21.1
- Actual ID (Ref) 5 mm
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- A9X1910
- A9X19-10
- A 9X19-10
