Category Information

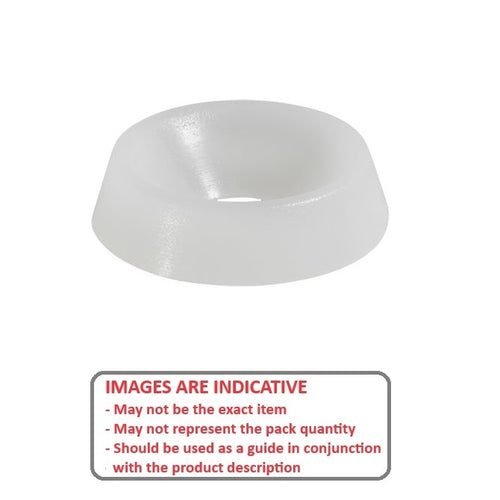

Washers - Cup - NylonNylon Cup Washers. Nylon cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

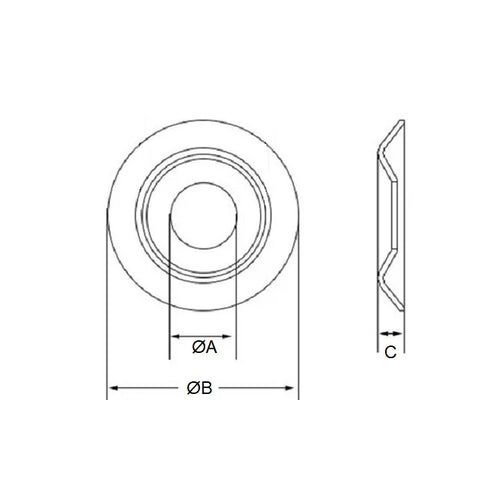

- Nominal Inside Diameter (A)
:
4.762
mm
(Equiv. 0.187 in.) - Nominal Outside Diameter (B)
14.70
mm
(Equiv. 0.579 in.) - Nom. Section (C)
3.90
mm
(Equiv. 0.154 in.) - Suits Screw Size 10 UNC / UNF
- Shoulder Angle 82 °
- Material Nylon (Zytel 101)
Product Compliance and Data
Additional Resources
Cross References
- 95481A033
- A9M691815
- A9M69-1815
- A 9M69-1815
