W0048-CU-013-024-BNP - Datasheet
MBA
Category Information

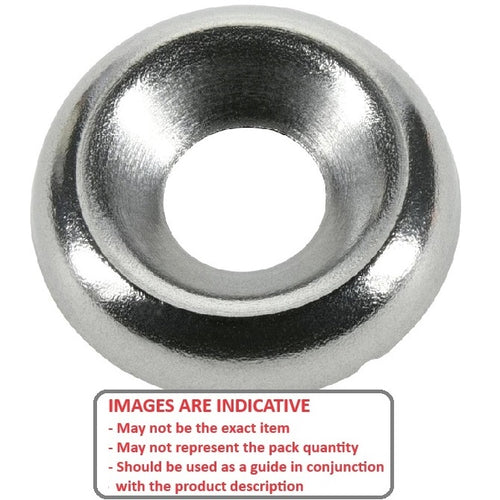

Washers - Cup - Brass - Nickel PlatedNickel Plated Brass Cup Washers. Nickel plated brass cup washer selection.
- Washers with a concave, cup-like shape, used with countersunk screws to provide a neat, finished look and evenly distribute the fastener's load.
- Protects softer materials from damage caused by the fastener head.

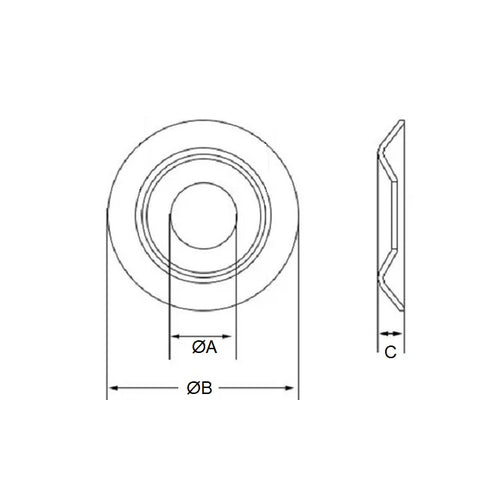

Product Data
- Nominal Inside Diameter (A)
:
4.762
mm
(Equiv. 0.187 in.) - Nominal Outside Diameter (B)
12.70
mm
(Equiv. 0.5 in.) - Nom. Section (C)
2.40
mm
(Equiv. 0.094 in.) - Size 10 UNC / UNF
- Material Brass Nickel Plated
Product Compliance and Data
Additional Resources
Cross References
- WASCA 1000494
- 92292A011
- WASCA WSCBNIPNO8
