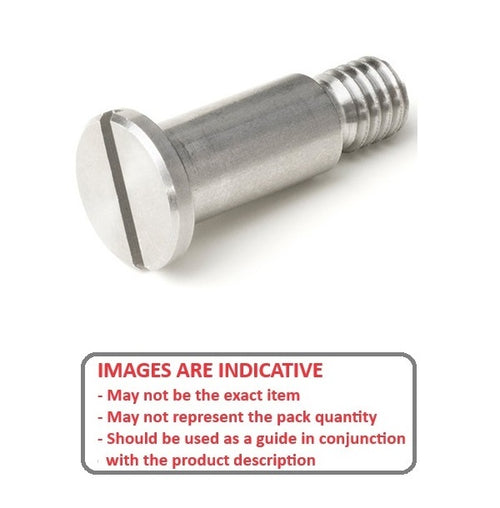

SHLD048-003-SL-P-S3 - Datasheet

MBA

Product Data

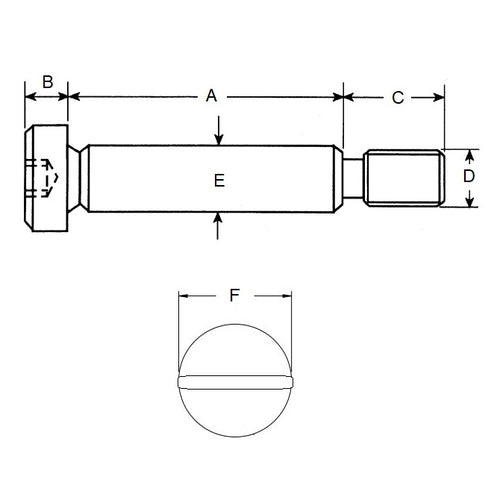

• Shoulder Diameter (E) : 4.762 mm _{- 0.013 / - 0.038}
  (Equiv. 0.187 in.)
• Shoulder Length (A) 3.200 mm
  (Equiv. 0.126 in.)
• Thread (D) 8-32 UNC
• Max. Thread Length (S) 4.78 mm
• Head Height (H) 3.96 mm
• Head Diameter (D) 7.95 mm
• Drive Type Slotted Drive
• Thread Type Class 3A Thread
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
