BFM-187-N - Datasheet
MBA
Category Information

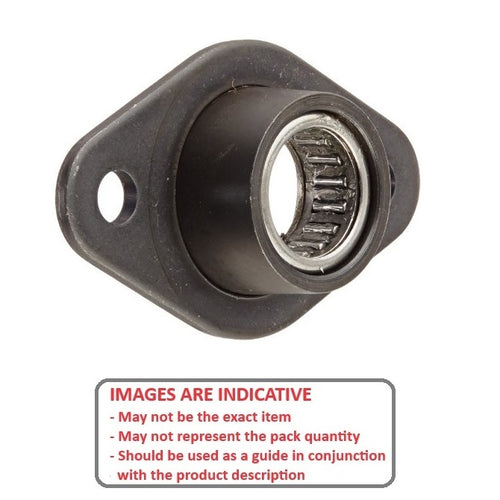

Housing Assembly - Flanged 2 Bolt - Self Aligning - Needle RollerNeedle Roller Self Aligning Flanged 2 Bolt Housing Assembly. Low profile self aligning flange mounted needle roller bearings
- +/- 5% Static Alignment
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

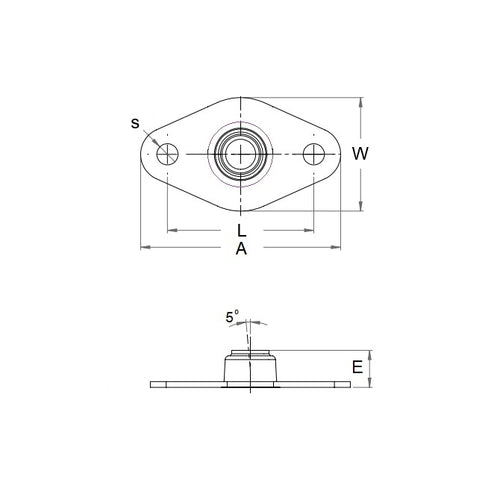

- Nominal Shaft Size
:
4.762
mm
(Equiv. 0.187 in.) - Width (W)
53.34
mm
(Equiv. 2.1 in.) - Overall Length (A)
16.76
mm
(Equiv. 0.66 in.) - Overall Height (E) 30.23 mm
- Min to Max Shaft Dia. 4.750 to 4.763 mm
- Max. Radial Dynamic Load 1913 N
- Bolt Hole Centres (L) 38.86 mm
- Max Speed 21000
- Material Steel
