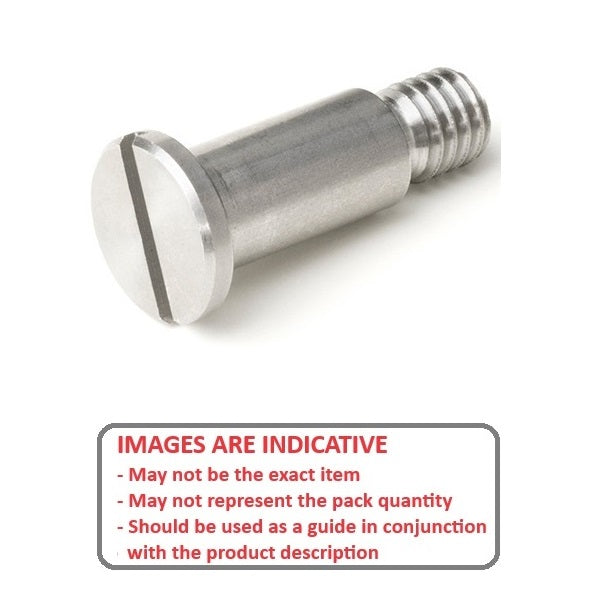

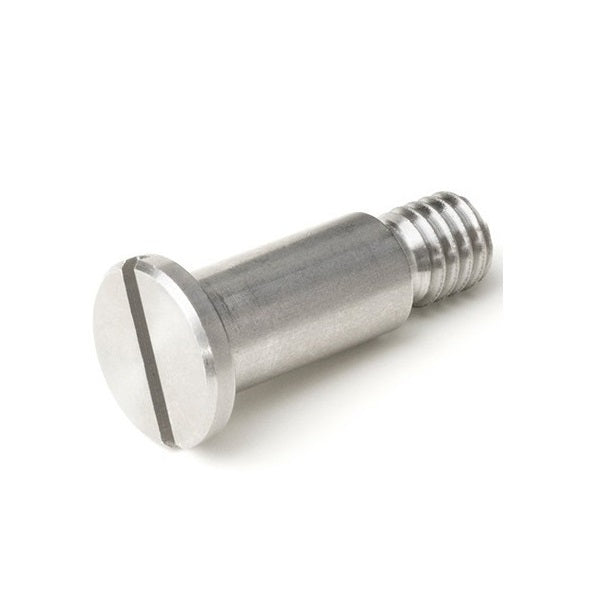

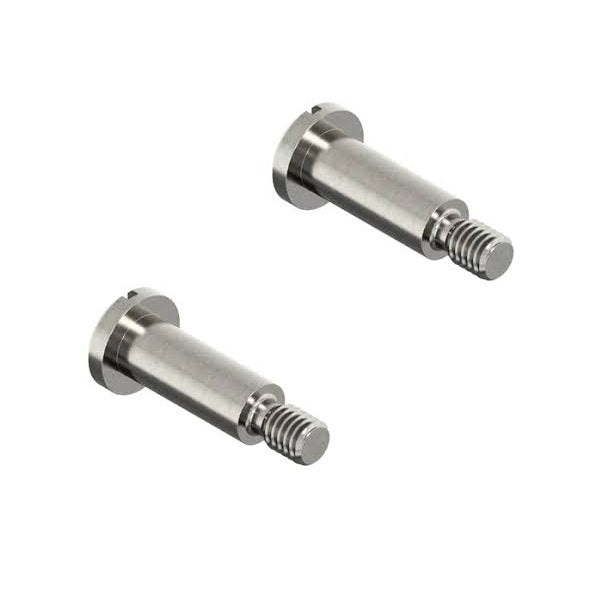

SHLD048-019-SL-S3 - Datasheet

MBA

Product Data

• Shoulder Diameter (E) : 4.762 mm _{- 0.025 / - 0.127}
  (Equiv. 0.187 in.)
• Shoulder Length (A) 19.100 mm
  (Equiv. 0.752 in.)
• Thread (D) 8-32 UNC
• Max. Thread Length (S) 4.76 mm
• Head Height (H) 3.97 mm
• Head Diameter (D) 7.94 mm
• Drive Type Slotted Drive
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• PDF Screws Catalogue

• Washers

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• ART65
• ART-65
• A9X15-0624
• A9X150624
