PSP-048-038H-S2 - Datasheet
MBA
Category Information

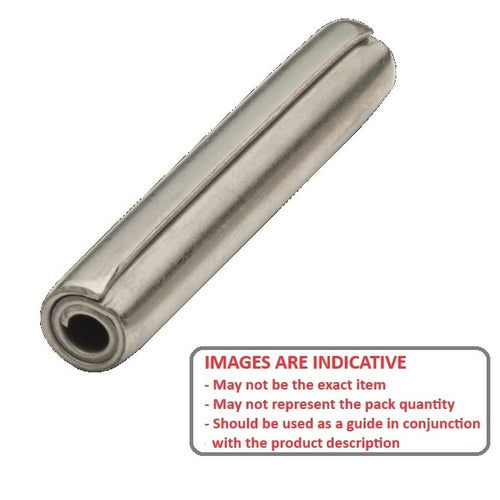

Pins - Coiled - Stainless - Heavy DutyHeavy Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Hole Diameter
:
4.76
mm
(Equiv. 0.187 in.) - Length
38.10
mm
+/- 0.50
(Equiv. 1.5 in.) - Drill Size
4.76 - 4.88
mm
(Equiv. 0.187 in.) - Loose Diameter 4.93 - 5.13 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 95765A422
- NoCor SPC3P-187-1500H
- SPC3P1871500H
