TH-048 - Datasheet
MBA
Category Information

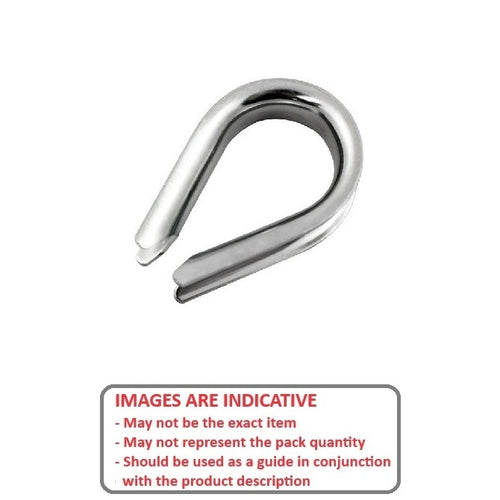

Cable Attachments - Thimbles - StainlessStainless Thimbles Cable Attachments. 316 Stainless Steel. Use with synchromesh cable or standard miniature cable. Use with synchromesh or standard miniature cable
- U-shaped metal insert used to reinforce the eye (loop) of a wire rope or cable, preventing damage from abrasion and friction.
- Protects the cable by maintaining its shape under tension, ensuring a stronger and more durable connection when secured with clips or ferrules.
- Made from durable materials like steel or stainless steel and are common in industrial, marine, and rigging applications.
- Thimbles provide loop support at higher loads and protect cables from wear when motion is present.
- Some thimbles may have open or uneven ends.
Product Data

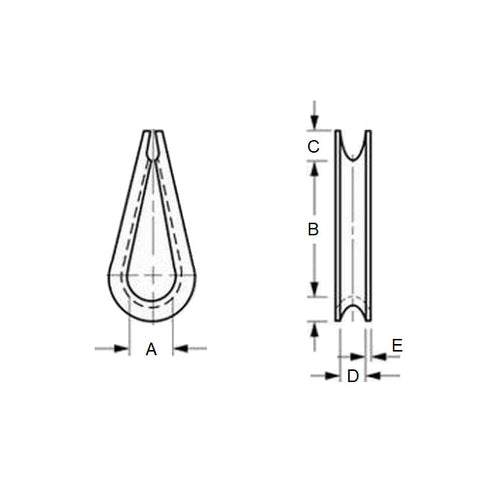

- Suitable cable diameter : 4.76 mm
- OAL (B+C+F) 33.734 mm
- Inside Width (A) 12.700 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® CBL-520
- CBL520
