ES-0475-0381-04-M - Datasheet

MBA

Category Information

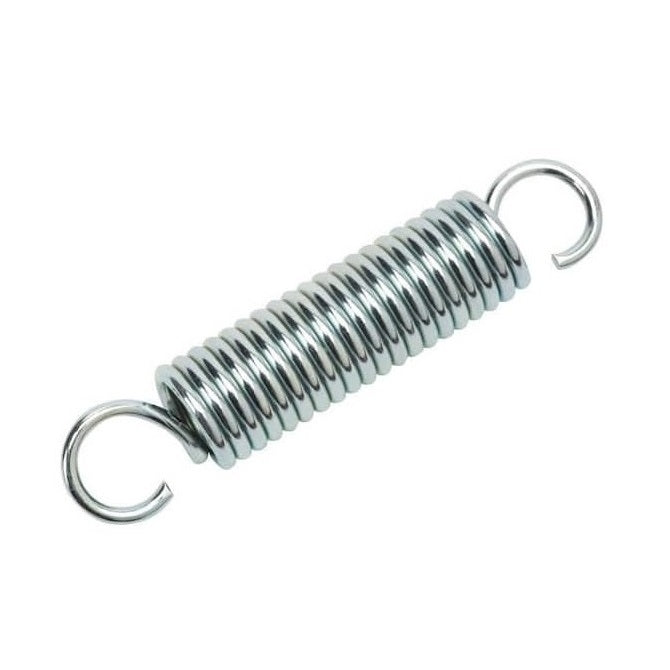

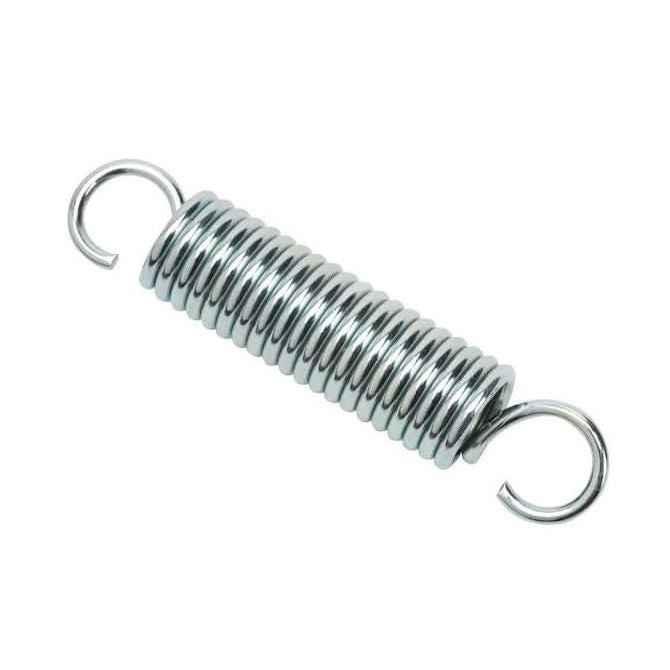

Springs - Extension - Stainless Steel

Stainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.

  • Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
  • Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
  • This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
  • 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
  • 302 stainless steel is slightly magnetic.

Product Data

  • OD (D0) : 4.75 mm
    (Equiv. 0.187 in.)
  • Approx. Overall Length (L0) 38.1 mm
    (Equiv. 1.5 in.)
  • Wire Diameter (d) 0.41 mm
    (Equiv. 0.016 in.)
  • Spring Rate 0.04 N/mm
  • Initial Tension (IT) 0.0 N
  • Material Steel - Zinc
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9654K815
  • ES-0404
  • ES0404
