ES-0475-0254-06-M - Datasheet
MBA
Category Information
Springs - Extension - Stainless SteelStainless Steel Extension Springs. 300 gradd stainless steel selection, including 303, 304 and 316.
- Helical spring that absorbs and stores energy by resisting a pulling force. When extended, it stores energy, and when released, it redistributes that energy to return to its original, coiled shape.
- Typically used to provide a pulling force between two objects, often with hooks or loops on either end for attachment.
- This category includes short and long lengths. An expanded range may be available on special order. Please enquire.
- 302 Stainless springs not recommended for applications exceeding 260 Deg C (500 Deg F).
- 302 stainless steel is slightly magnetic.
Product Data

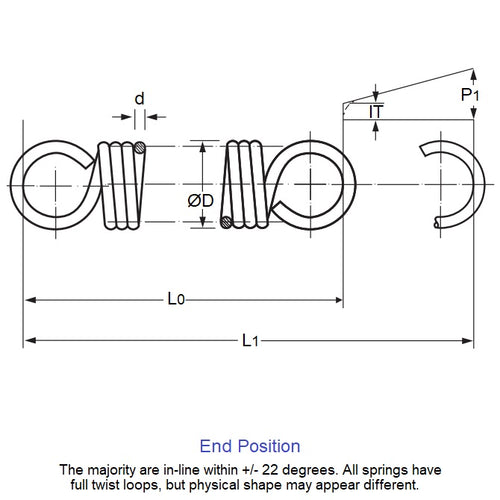

- OD (D0) : 4.75 mm
- Approx. Overall Length (L0) 25.4 mm
- Wire Diameter (d) 0.56 mm
- Spring Rate 0.40 N/mm
- Initial Tension (IT) 0.4 N
- Material Steel - Zinc
Product Compliance and Data
Additional Resources
Cross References
- 3114T39
- Reid Tool® ES-0407
- ES0407
