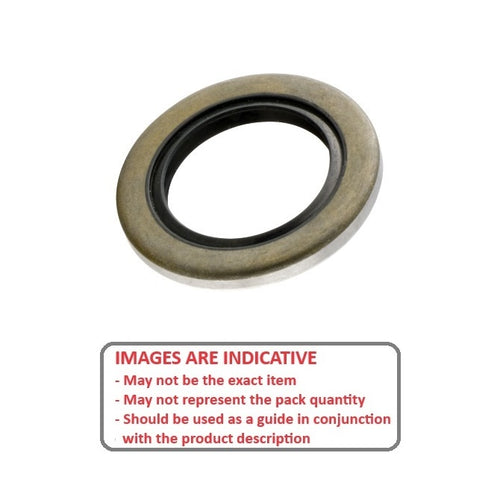

TLM-275RS - Datasheet

MBA

Product Data

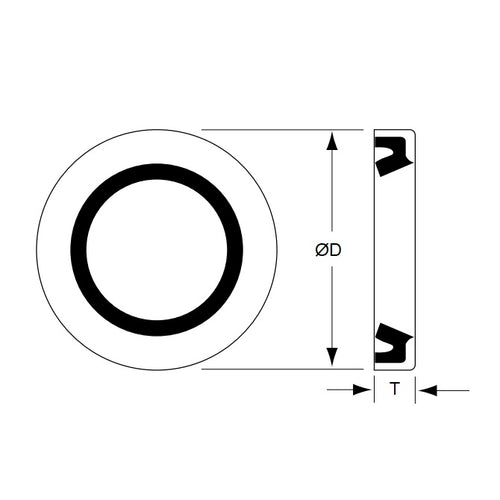

• Inside Diameter : 4.750 mm
• Outside Diameter 39.802 mm
• Thickness (T) 4.750 mm
• Material Nitrile (NBR or BUNA-N)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
