DVT4-0635-HSH - Datasheet
MBA
Category Information

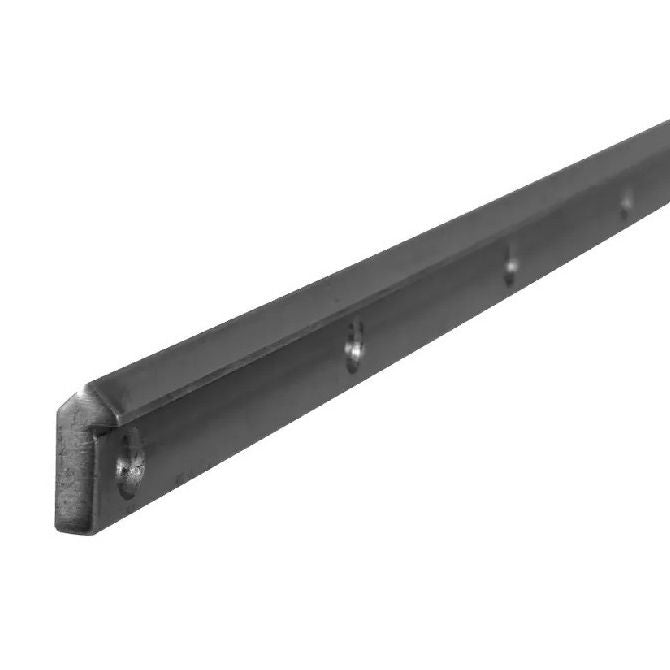

Dual Vee - Tracks - Stainless SteelStainless Steel Tracks Dual Vee. Vee guide rails for vee grooved track roller guide wheels.
- Match Track Size with same size Guide Wheel.
Product Data
- Track Size : 4
- Overall Length (L)
635.0
mm
(Equiv. 25 in.) - Overall Width (F)
11.1
mm
(Equiv. 0.437 in.) - Height (E / MDT) 27.00 / 7.92 mm
- Type Single Edged
- Hole Spacing (C) 101.6 mm
- Number of Holes 7 (8.74mm)
- End Hole Spacing (B) 12.7 mm
- Condition Hardened Rc 48-50
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- WZ85
- WZ-85
- A7W15M42500
- A7W15-42500
- A7W1542500
