Miniature Bearings Australia
LYP-CLK-045-032-S6 - Datasheet
MBA
Category Information

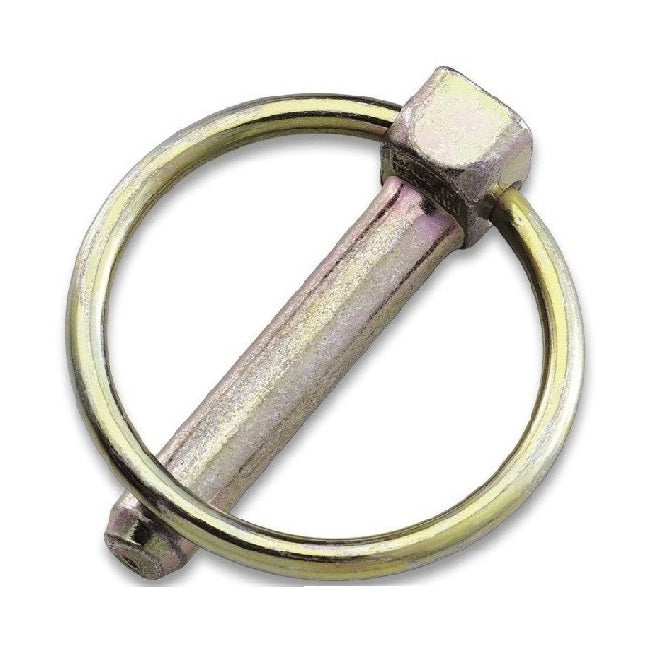

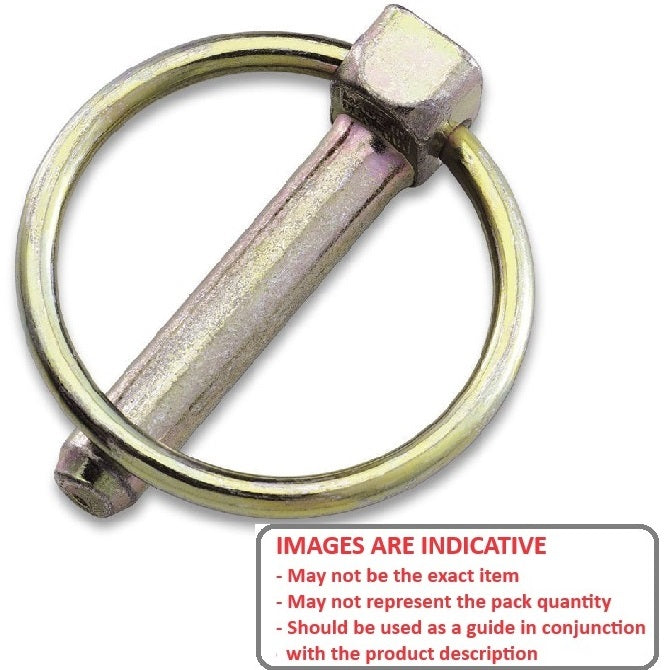

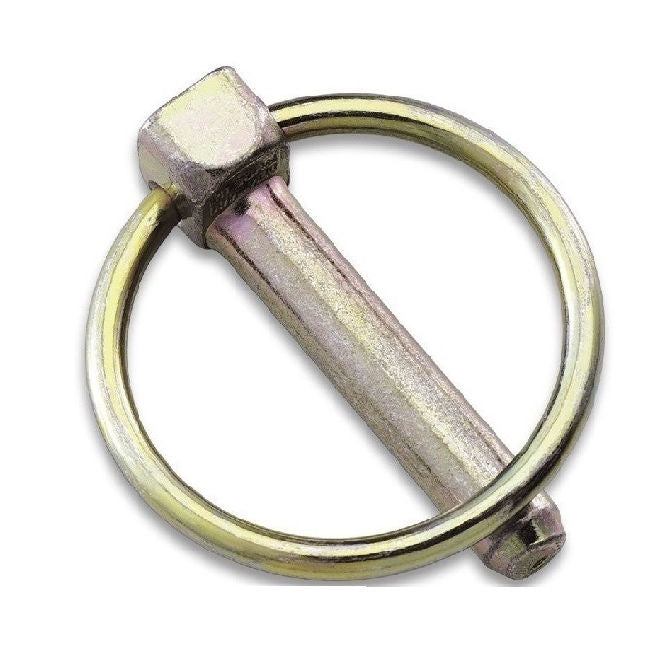

Pins - Clik - Stainless SteelStainless Steel Clik Pins. Self locking ring snaps down to hold them securely in place. Easy grip ring for quick removal. Also known as a lynch pin.
- Features an “over center” ring loop attached to the head which snaps down hard to hold the fastener in place.
- Quick-release, tool-free locking mechanism used in various applications like agricultural equipment, trailers, and automotive systems.
- Pin is made from carbon steel and heat treated to RA 50-60.
- Ring is hot drawn spring steel with hardness of RC 47-48.

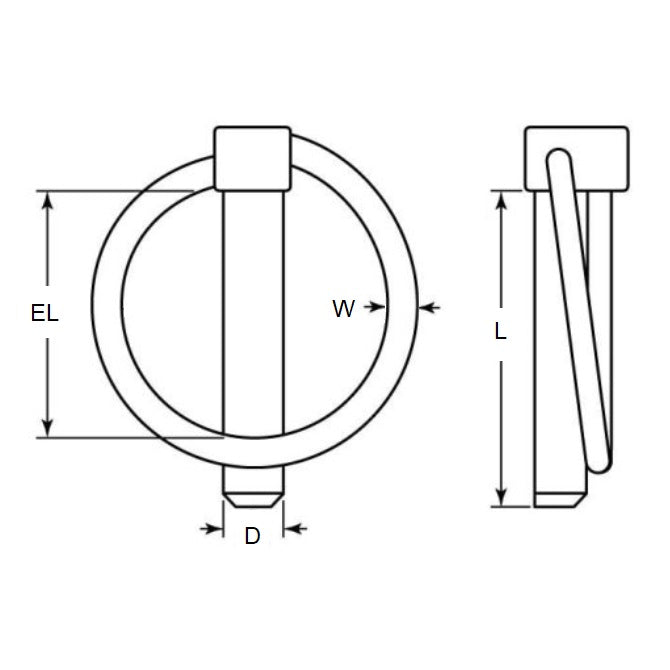

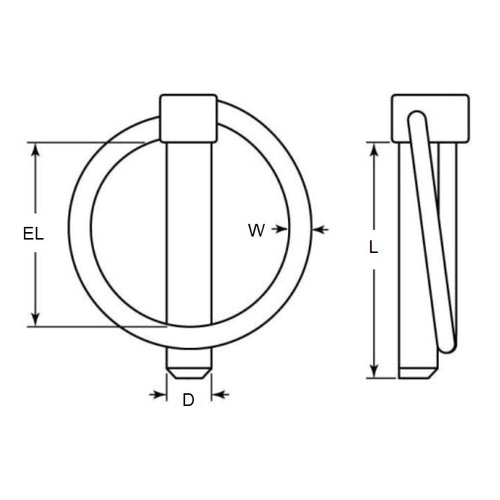

Product Data
- Pin Diameter
:
4.50
mm
 (Equiv. 0.177 in.)
- Grip Length
32.0
mm
 (Equiv. 1.26 in.)
- Wire Thickness
2.5
mm
 (Equiv. 0.098 in.)
- Overall Length 47 mm
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
