LYP-CLK-045-032-MZ - Datasheet
MBA
Category Information

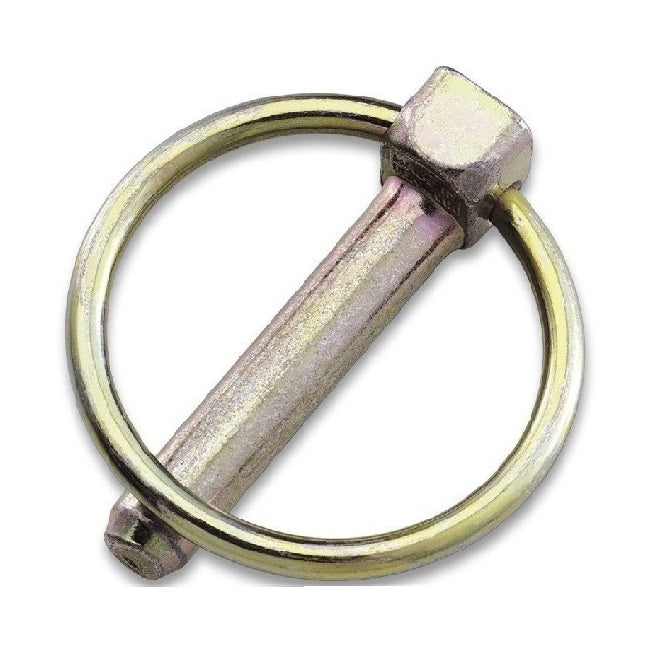

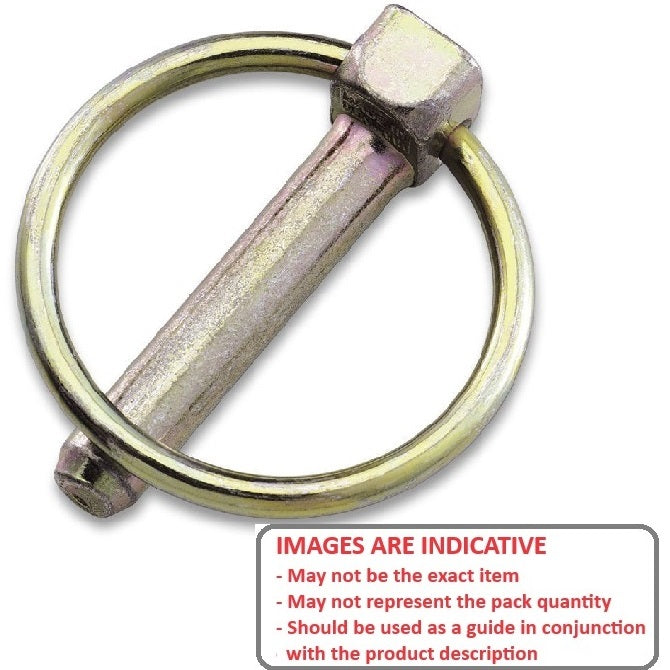

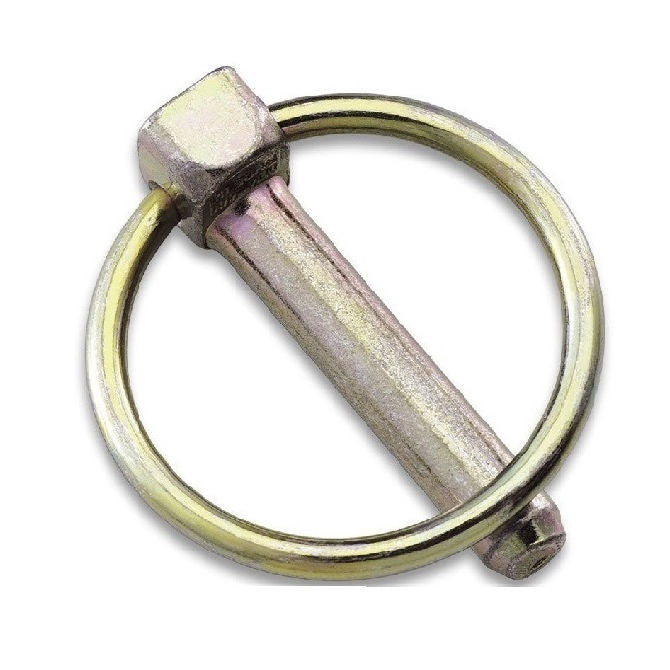

Pins - Clik - Mild SteelMild Steel Clik Pins. Self locking ring snaps down to hold them securely in place. Easy grip ring for quick removal. Also known as a lynch pin.
- Pin is made from carbon steel and heat treated to RA 50-60.
- Ring is hot drawn spring steel with hardness of RC 47-48.
- Zinc plated.
Product Data

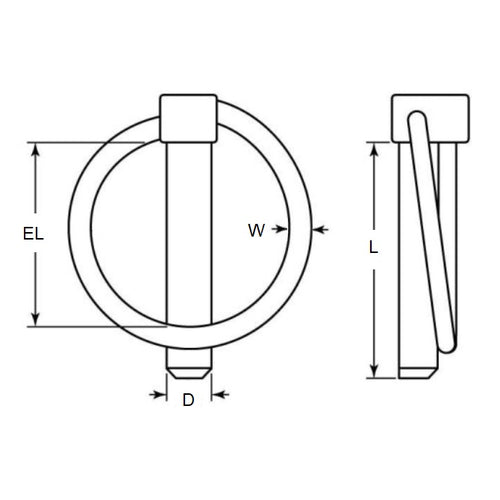

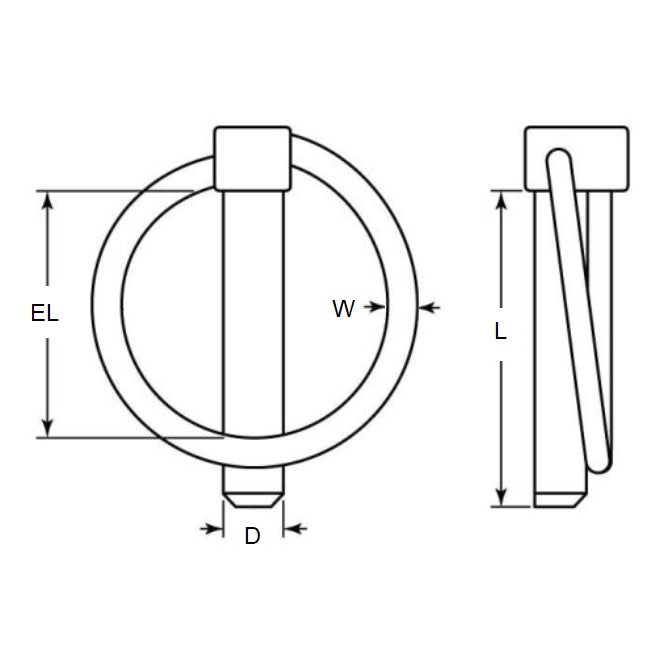

- Pin Diameter
:
4.50
mm
(Equiv. 0.177 in.) - Grip Length
32.0
mm
(Equiv. 1.26 in.) - Wire Thickness
2.5
mm
(Equiv. 0.098 in.) - Overall Length 47 mm
- Finish Zinc Plated
- Material Steel - Mild Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90170A650
- Hitech LPYP45
