CS-0457-0254-05-S2-G - Datasheet
MBA
Category Information

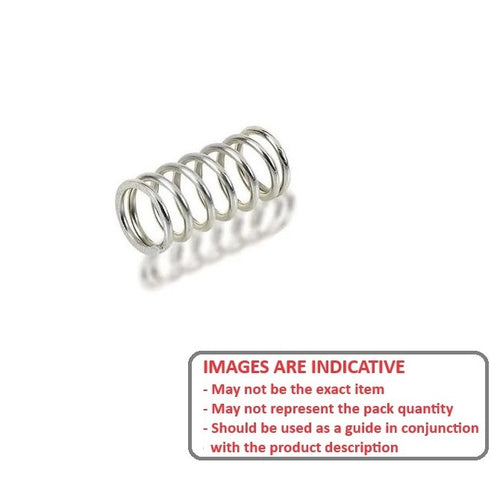

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
- Spring OD (D0)
:
4.57
mm
+/- 0.127
(Equiv. 0.18 in.) - Free Length (L0)
25.4
mm
+/- 0.64
(Equiv. 1 in.) - Wire Diameter (d)
0.51
mm
+/- 0.015
(Equiv. 0.02 in.) - Loaded Height (L1) 12.83 mm
- Load at L1 8.36 N
- Rate (P/f) 0.5 N/mm
- Solid Height (Sh) 7.671 mm
- Approx. ID 3.6 mm
- End Type Closed Ground Flush
- Max Rod Dia. (A) 3.32 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
