RCL-045-083-Z - Datasheet
MBA
Category Information

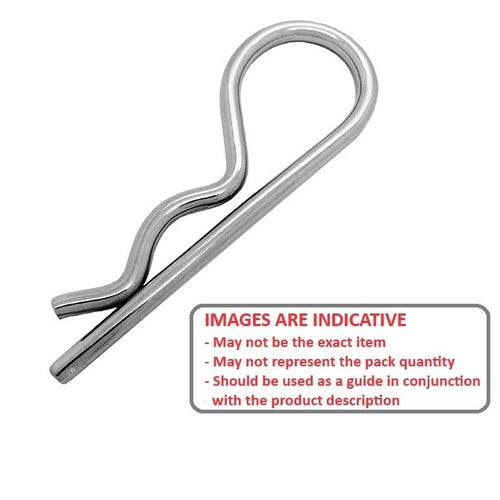

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

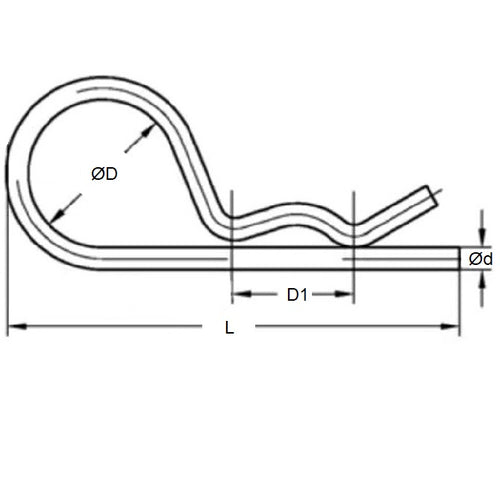

- Wire Thickness (d)
:
4.50
mm
(Equiv. 0.177 in.) - Length (L)
83.0
mm
(Equiv. 3.268 in.) - Material Zinc Plated
- Drill Hole Size 4.76 mm
- Inside Eye Diameter (D) 23.81 mm
- Shaft Size Range 15.88 to 25.40 mm
- Approx. Bridge Length (D1) 30 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Hitech MSHPZP45
