TMF-601-ARS - Datasheet
MBA
Category Information

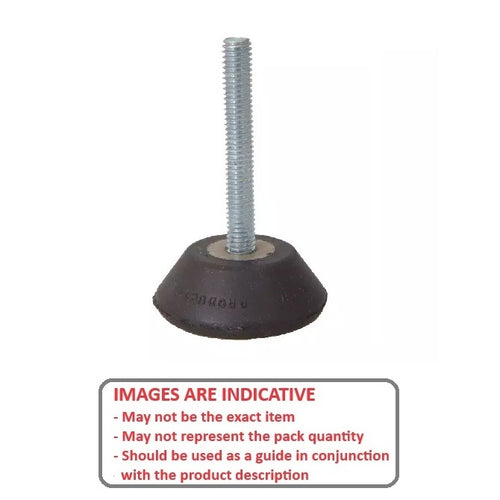

Mounts - Levelling Bonded Neoprene - With StudWith Stud Levelling Bonded Neoprene Mounts. Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.
- Mounting feet let you isolate all types of machinery and equipment from vibration and floor motion.
Product Data
- Load Capacity : 4.5 to 18.0 Kg
- Min Load Deflection
2.032
mm
(Equiv. 0.08 in.) - Max Load Deflection
5.080
mm

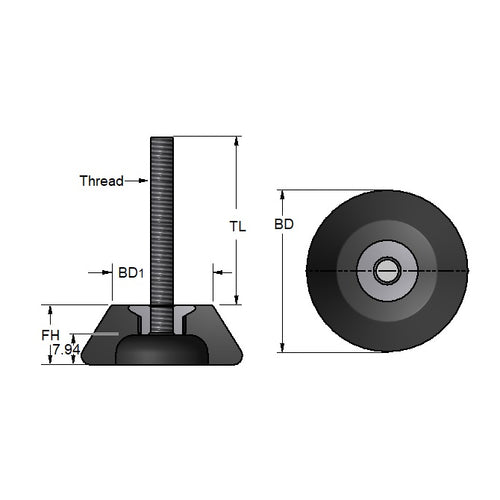

(Equiv. 0.2 in.) - Thread 1/2-13
- Thread Length 63.5 mm
- Base Diameter 55.6 mm
- Foot Height 20.6 mm
- Top Diameter 34.9 mm
