CS-0440-0355-04-S2-C - Datasheet
MBA
Category Information

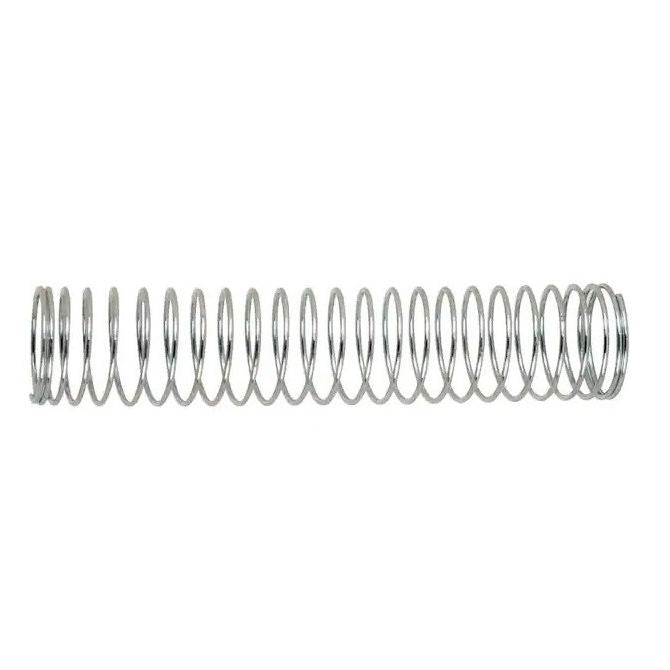

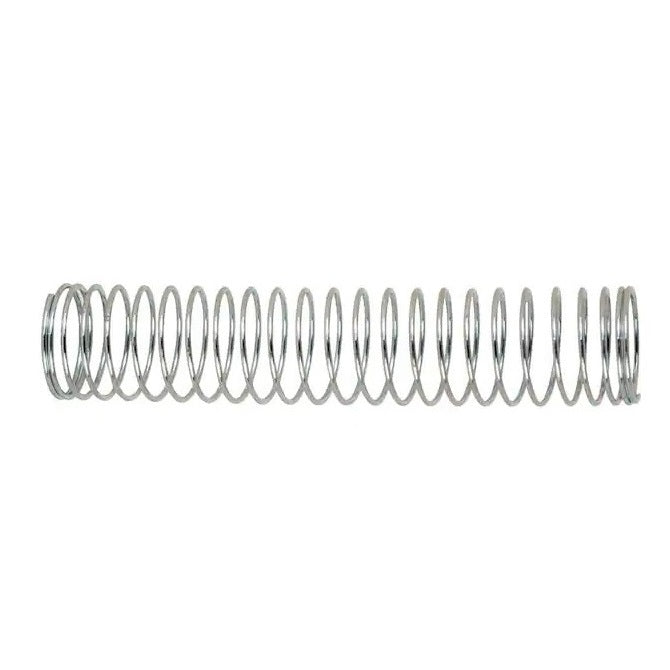

Springs - Compression - Stainless SteelStainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.
- Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
- Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
- This category includes short and long lengths.
- If the end type is important to your application please contact us for more information or a special quote.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Spring OD (D0)
:
4.40
mm
+/- 0.127
(Equiv. 0.173 in.) - Free Length (L0)
35.5
mm
+/- 1.27
(Equiv. 1.398 in.) - Wire Diameter (d)
0.40
mm
+/- 0.015
(Equiv. 0.016 in.) - Loaded Height (L1) 11.40 mm
- Load at L1 4.37 N
- Rate (P/f) 0.2 N/mm
- Solid Height (Sh) 8.60 mm
- Approx. ID 3.6 mm
- End Type Closed
- Max Rod Dia. (A) 3.38 mm
- Material Stainless Steel 302/304 (Similar to A2, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- CD2104
