ECL-0032-0045-C - Datasheet
MBA
Category Information

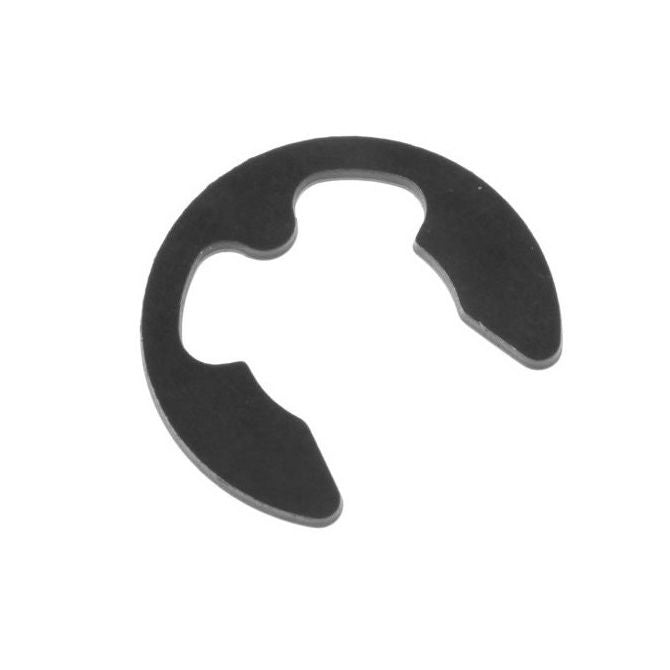

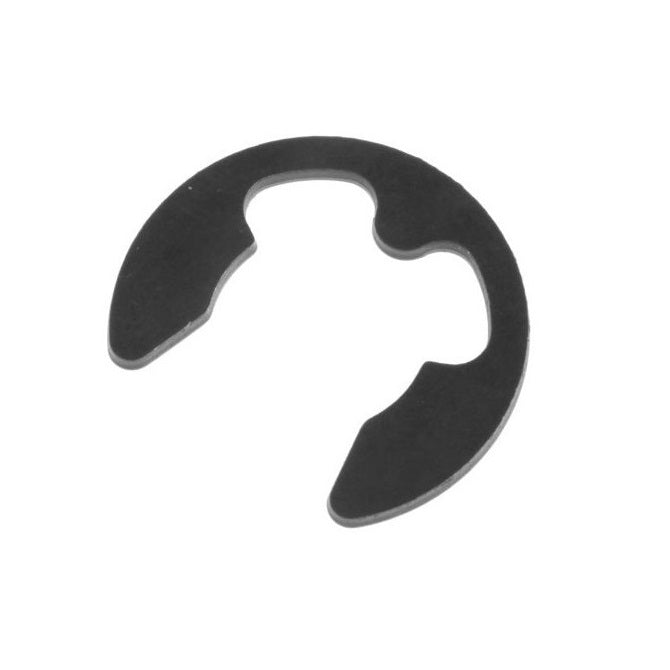

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
4.45
mm
+ 0.55 / - 0.00
(Equiv. 0.175 in.) - Groove Dia. (Dg)
3.20
mm
+ 0.00 / - 0.075
(Equiv. 0.126 in.) - Clip Thickness (T)
0.60
mm
+/ - 0.02
(Equiv. 0.024 in.) - Clip OD Loose (D1) 6.80 mm
- Groove Width (W) 0.64 mm
- Maximum Rec. Shaft Dia (S) 5.00
- Clip OD in groove (C1) 7.30 mm
- Loose Clip ID (A) 2.70 mm
- Min. Extension (n) 1.00
- Standard DIN6799
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- ATA 170.474006.01
- 98543A103
- NoCor DE-032
- 15000032
- 1500-0032
- D15000032
- D1500-0032
- DE032
