SHX-TP-0285C-06-017-A - Datasheet

MBA

Product Data

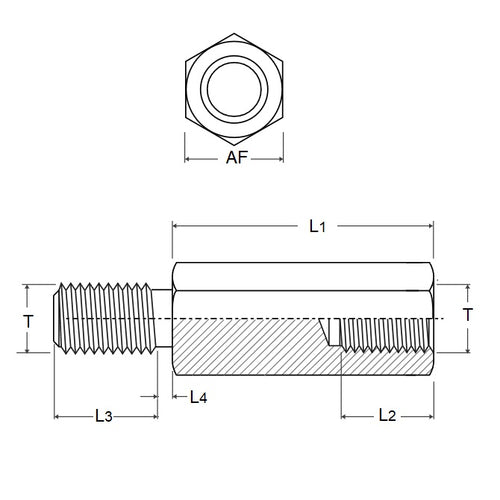

• Thread Size : 4-40 UNC (2.85mm)
• Stud Length (L3) 4.76 mm
• Base Length (L1) 12.70 mm
• Across Flats (A/F) 6.35 mm
• Bore Thread Length (L2) 6.35 mm
• Finish Plain
• Material Aluminium

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 93505A432
• Reid Tool® RAF-606
• RAF606
