SC028C-010-P-PH-CZ - Datasheet
MBA
Category Information

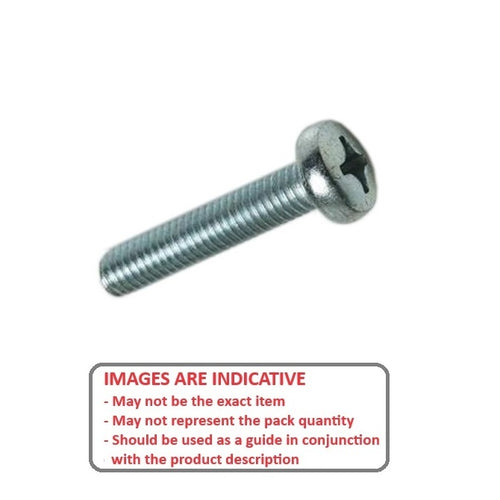

Screws - Pan Head - Phillips - SteelSteel Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 4-40 UNC (2.85mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Material Zinc Plated Steel
- Max Head Diameter 5.6 mm
- Max Head Height 1.7 mm
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90272A108
- MicroFast MSPP0406
