SC028C-010-C-SK-C - Datasheet
Brighton Best
Category Information

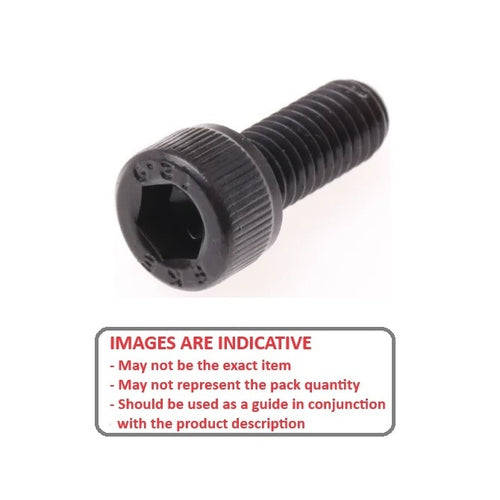

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 4-40 UNC (2.85mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Material High Tensile Steel / Black Oxide
- Head Length (B Max.) 2.9 mm
- Head Diameter (A Max.) 4.7 mm
- Drive Depth (E) 1.30 mm
- Shank Diameter (C) 2.73 - 2.84 mm
- Hex Key (D) 2.38 (3/32) mm
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Min thread Length 9.5 mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Applications & Uses
- RC Car Parts
- Associated - RC10 - T3 1/10 - Socket Cap Screw 4-40-3-8mm
Cross References
- Associated 6924
- 91251A108
- LOSI LOSA6206
- MicroFast SCA0406
- HK72020B
- HK-72020B
