SC028C-010-B-SK-S4 - Datasheet
Brighton Best
Category Information

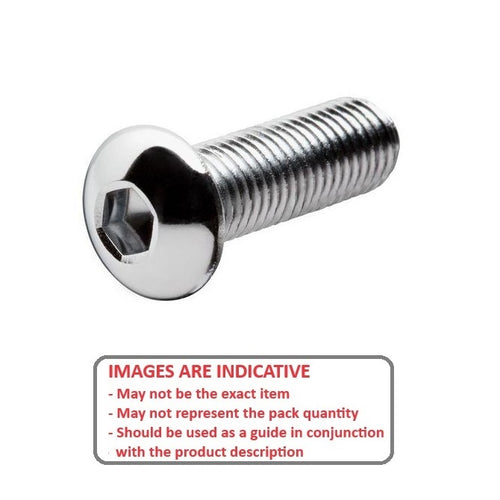

Screws - Button - Socket - Stainless - 304304 Stainless Socket Button Screws. UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7380.
Product Data
- Thread Size (C) : 4-40 UNC (2.85mm)
- Thread Length (L)
9.5
mm
(Equiv. 0.374 in.) - Material 304 Stainless
- Max Head Diameter 5.4 mm
- Max Head Height 1.5 mm
- Hex Key (D) 1.59 (1/16) mm
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 202018
- 92949A108
- MicroFast SBS0406
