SC028C-006-C-SK-A - Datasheet
MBA
Category Information

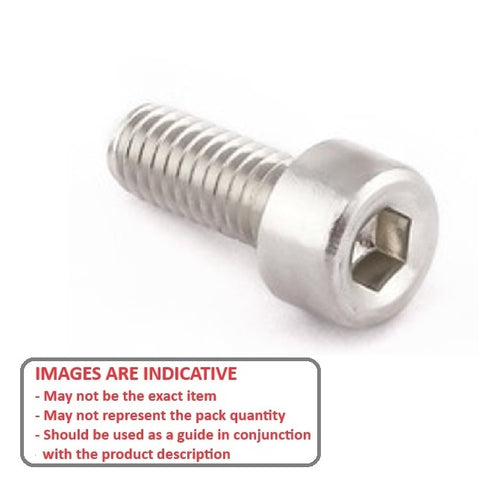

Screws - Socket Cap - AluminiumAluminium Socket Cap Screws. Variety of colours available.
- An expanded range may be available on special order. Please enquire.
- Other colours available on request. Minimum quantities will apply.
- Metric Sizes to DIN912.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 4-40 UNC (2.85mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material Aluminium
- Head Length (B Max.) 2.9 mm
- Head Diameter (A Max.) 4.7 mm
- Drive Depth (E) 1.30 mm
- Shank Diameter (C) 2.73 - 2.84 mm
- Hex Key (D) 2.38 (3/32) mm
- Colour Natural
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Min thread Length 6.4 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 98511A211
- MicroFast SCL0404
