SC028C-006-B-TX-S3 - Datasheet
MBA
Category Information

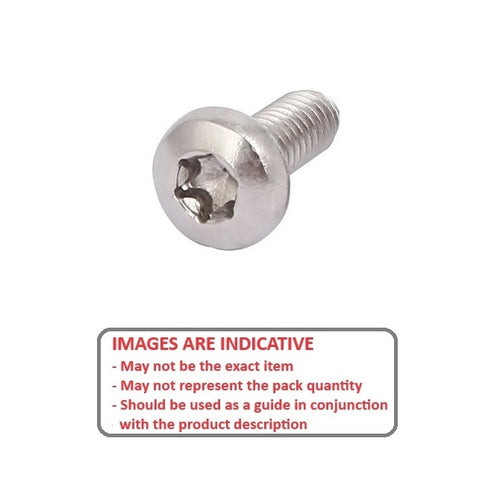

Screws - Button - Torx - StainlessStainless Torx Button Screws. UNC - UNF
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

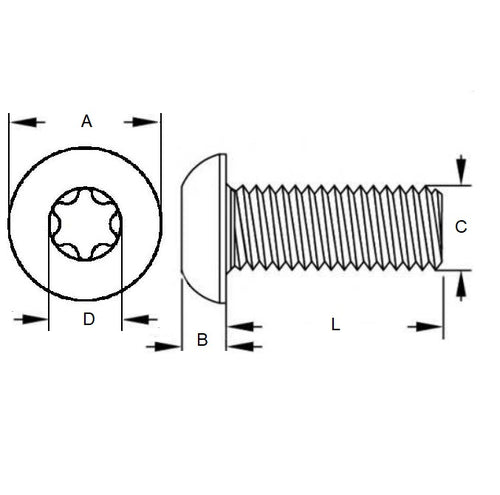

- Thread Size (C) : 4-40 UNC (2.85mm)
- Thread Length (L)
6.4
mm
(Equiv. 0.252 in.) - Material 303 Stainless
- Type Button Head / 5 Lobe T10 (Torx® Style)
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Stainless Steel Grade 303/304 HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Small Parts MTX-440-4P
- MTX4404P
