SC028C-006-C-SK-S188-NT - Datasheet
MBA
Category Information

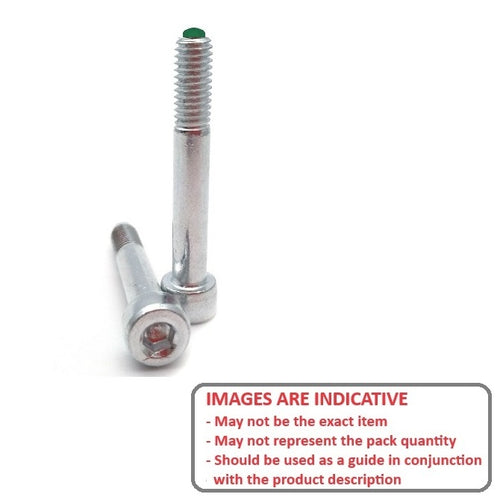

Screws - Cap Tipped - Socket - StainlessStainless Socket Cap Tipped Screws. Nylon tipped socket cap screws in 18-8 Stainless Steel - similar to 316 stainless
- Socketed cap head screws with a soft tip end.
Product Data

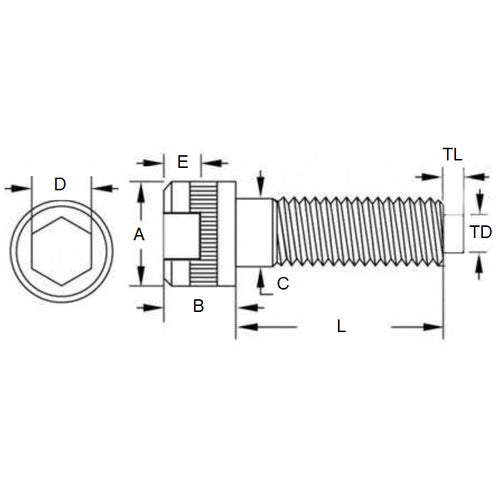

- Thread Size (C) : 4-40 UNC (2.85mm)
- Thread Length (L) 6.4 mm
- Tip Diameter 1.60 mm
- Tip Length 0.86 mm
- Head Length (B Max.) 2.9 mm
- Head Diameter (A Max.) 4.7 mm
- 2.73 - 2.84
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
