SS028C-0048-AS-NT - Datasheet

MBA

Category Information

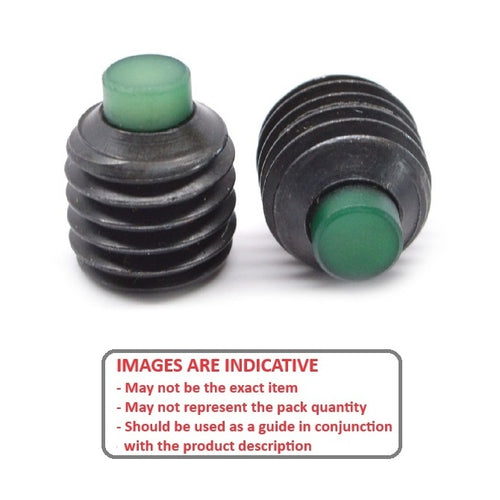

Socket Set Screws - Nylon Tipped - Alloy Steel

Alloy Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.

Product Data

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

Thread Size : 4-40 UNC (2.85mm)
Thread Length (L) 4.8 mm
(Equiv. 0.189 in.)
Type Nylon Tipped
Overall Length (L + L1) 5.6 mm
Tip Diameter (d) 1.6 mm
Tip Length (L1) 0.8
Pitch 0.635 mm
Threads Per Inch 40 TPI
Drive Type Black Oxide
Material Carbon Steel

Country of Origin: US

Product Compliance and Data

RoHs Statement
REACH Statement
CoC

Additional Resources

Socket Set Screws Master PDF

Measuring Small Parts
Metalworking Resource Guide

Screws & Nuts Catalogue
Shoulder Screws Catalogue
Socket Set (Grub) Screws Catalogue
Thumb Screws & Thumb Nuts Catalogue
Thread Size Chart - Combined Imperial & Metric

Cross References

94115A105
BTS315
BTS-315
