SS028C-0032-AS-BT - Datasheet

MBA

Category Information

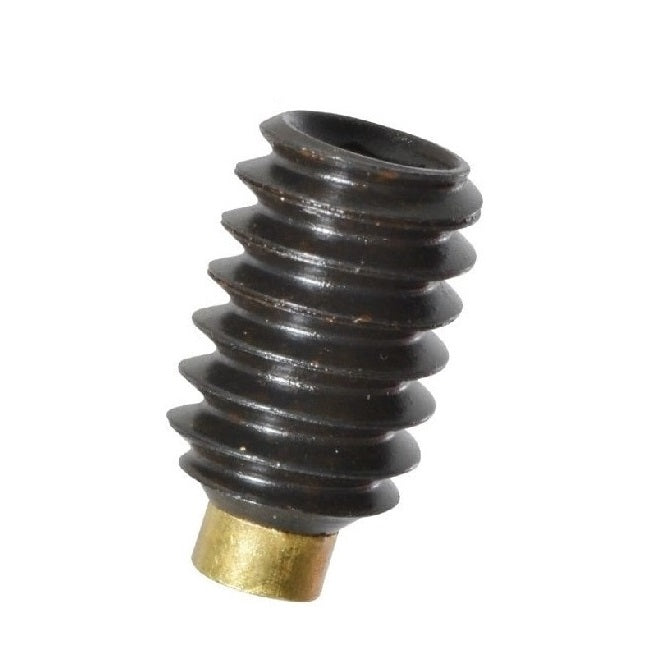

Socket Set Screws - Brass Tipped - Alloy Steel

Alloy Steel Brass Tipped Socket Set Screws. Brass tipped grub screws. Helps to prevent shaft damage on harder shafts.

  • Socket driven grub screws that uses a brass tip to prevent damage to the shaft it secures.
  • Brass tip provides a gentler contact point than a pointed or cup-point set screw, making it ideal for applications like securing gears to shafts where protecting the component's surface from marring or wear is crucial.
  • Often used in precision mechanical and electrical assemblies where a secure, non-damaging hold is required.

Product Data

  • Thread Size : 4-40 UNC (2.85mm)
  • Thread Length (L) 3.2 mm
    (Equiv. 0.126 in.)
  • Type Brass Tipped
  • Overall Length (L + L1) 4.0 mm
  • Tip Diameter (d) 1.6 mm
  • Tip Length (L1) 0.8
  • Pitch 0.635 mm
  • Threads Per Inch 40 TPI
  • Finish Black Oxide
  • Material Carbon Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 91381A670
  • Small Parts BSAS-440-2
  • BSAS4402
  • BTS10
  • BTS-10
