SC028C-025-C-SK-S4 - Datasheet
Brighton Best
Category Information

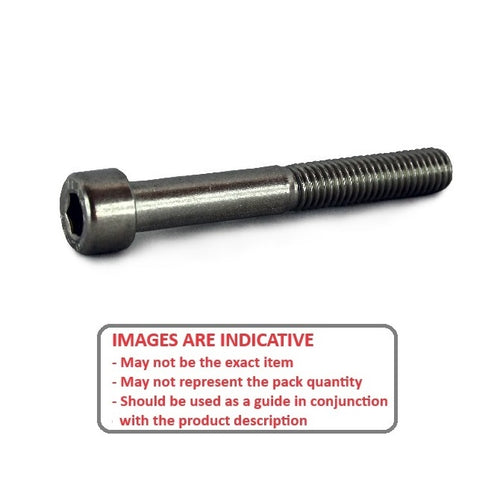

Screws - Socket Cap - Stainless - 303-304303-304 Stainless Socket Cap Screws. UNC - UNF - METRIC - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 4-40 UNC (2.85mm)
- Thread Length (L)
25.4
mm
(Equiv. 1 in.) - Material 304 Stainless
- Head Length (B Max.) 2.9 mm
- Head Diameter (A Max.) 4.7 mm
- Drive Depth (E) 1.30 mm
- Shank Diameter (C) 2.73 - 2.84 mm
- Hex Key (D) 2.38 (3/32) mm
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Min thread Length 19.1 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 592079
- 92196A115
- MicroFast SCS0416
