NT028C-HX-BR - Datasheet
MBA
Category Information

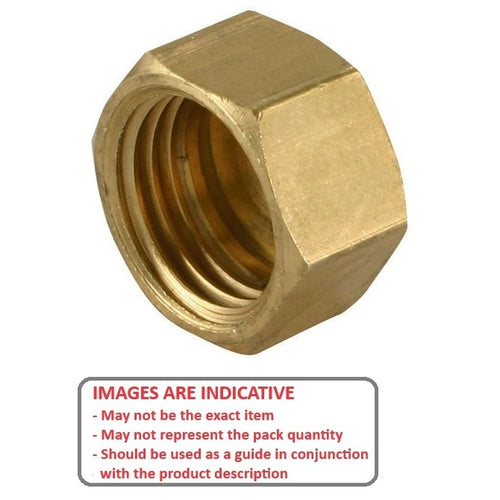

Nuts - Hexagonal - Full - BrassBrass Full Hexagonal Nuts. UNC - UNF - BA - METRIC.
- An expanded range may be available on special order. Please enquire.
- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
- Nuts marked as type SCALE have the same dimension across flats as the brass hex head screw of the same thread size.
Product Data
- Thread Size : 4-40 UNC (2.85mm)
- Thickness (H)
2.49
mm
(Equiv. 0.098 in.) - Across Flats (A/F)
6.35
mm
(Equiv. 0.25 in.) - Type Standard
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- 92671A005
- MicroFast HNB0440
