Miniature Bearings Australia
NT028C-HX-NY - Datasheet
MBA
Category Information

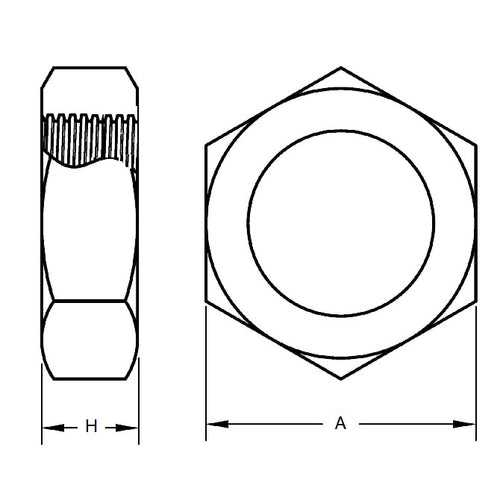

Nuts - Hexagonal - Full - Nylon - StandardStandard Nylon Full Hexagonal Nuts. Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- An expanded range may be available on special order. Please enquire.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 4-40 UNC (2.85mm)
- Thickness (H)
2.38
mm
(Equiv. 0.094 in.) - Across Flats (A/F)
6.35
mm
(Equiv. 0.25 in.) - Type Hex Nut
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Nylon (Polyamide 6/6 Natural)
Product Compliance and Data
Additional Resources
Applications & Uses
- RC Car Parts
- Associated - RC10 - T3 1/10 - 4-40 Nylon Nuts
Cross References
- 94812A200
- MicroFast HNN0440
- Small Parts HNN-440
- HNN440
