Miniature Bearings Australia
SK028C-019-PH-CZ - Datasheet
MBA
Category Information
Screws - Countersunk - Phillips - SteelSteel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

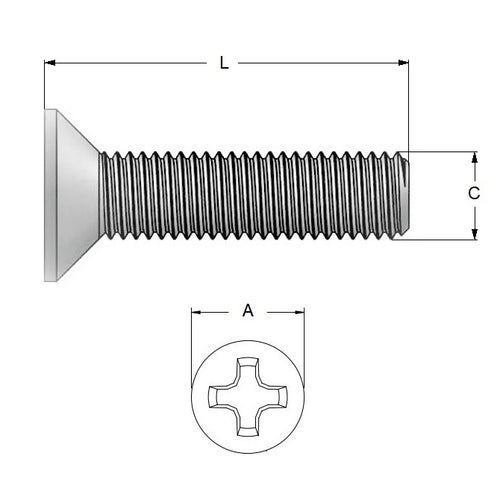

- Thread Size (C) : 4-40 UNC (2.85mm)
- Overall Length (L)
19.1
mm
(Equiv. 0.752 in.) - Material Zinc Plated
- Max Head Diameter (A) 5.38 mm
- Max Head Height 2.1 mm
- Type Countersunk / Philips
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90273A113
- Hitech MSCPZP44034
