SK028C-013-PH-CZ - Datasheet
MBA
Category Information

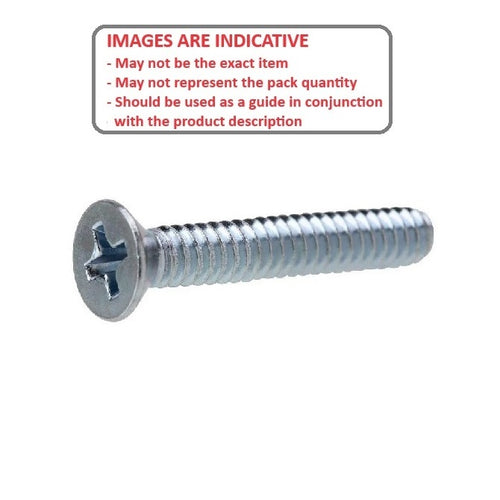

Screws - Countersunk - Phillips - SteelSteel Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : 4-40 UNC (2.85mm)
- Overall Length (L)
12.7
mm
(Equiv. 0.5 in.) - Material Zinc Plated
- Max Head Diameter (A) 5.38 mm
- Max Head Height 2.1 mm
- Type Countersunk / Philips
- Pitch 0.635 mm
- Threads Per Inch 40 TPI
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90273A110
- Hitech MSCPZP44012
