Miniature Bearings Australia
K-0400-0400-2000A-C - Datasheet
ExaktKey
Category Information

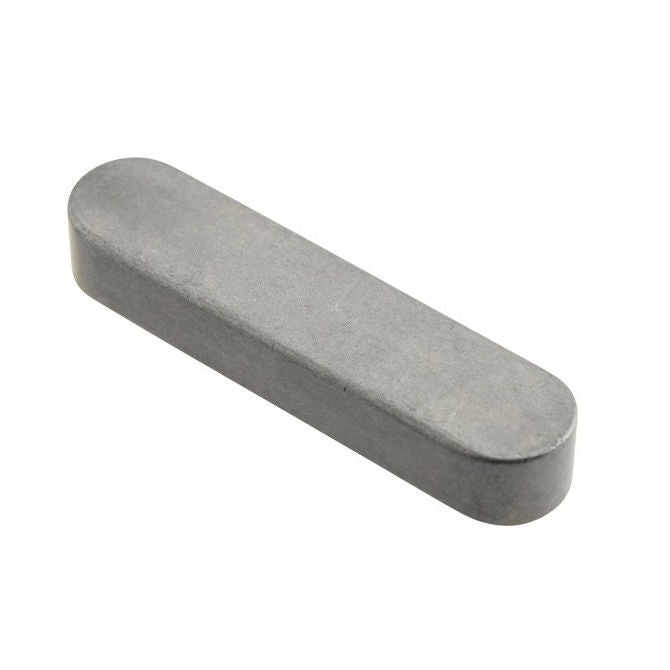

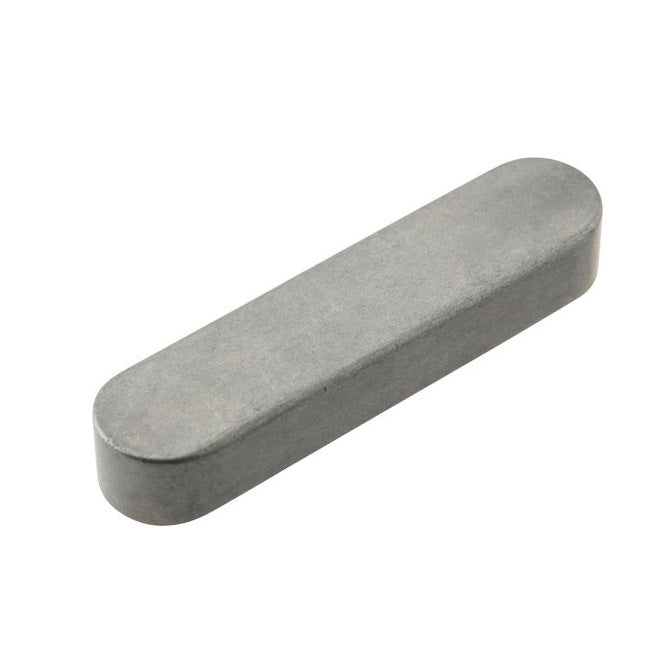

Keys - Machine - Carbon SteelCarbon Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
4.00
mm
+ 0 / - 0.030
(Equiv. 0.157 in.) - Height (h)
4.00
mm
+ 0 / - 0.030
(Equiv. 0.157 in.) - Length (L)
20.00
mm
+/ - 0.25
(Equiv. 0.787 in.) - Finish Plain
- Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor 320404-020
- NoCor 320404-0204x4x20FormA
- 96717A145
- Misumi C-KES4-20
- CKES420
- 3204040204x4x20FormA
