ECL-0032-0044A-C - Datasheet
MBA
Category Information

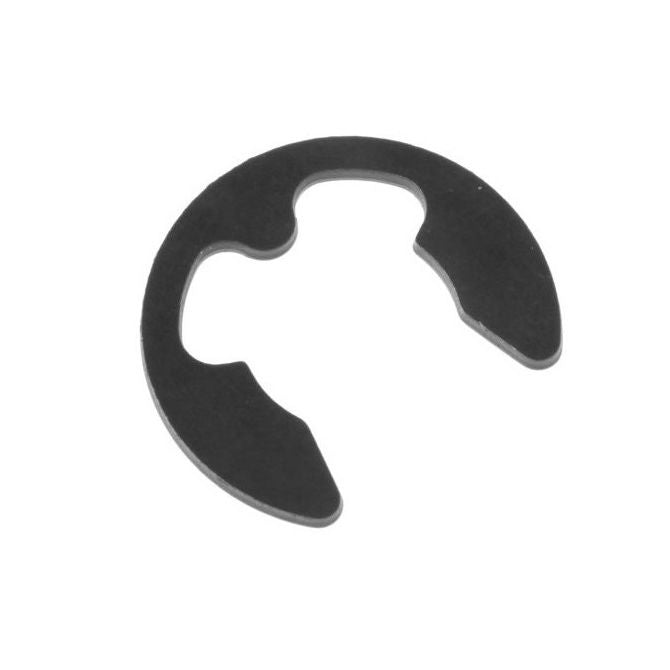

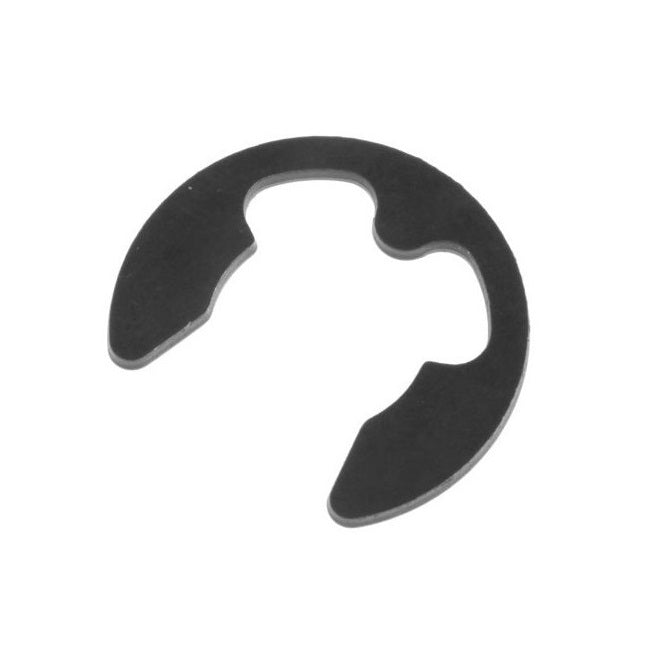

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data

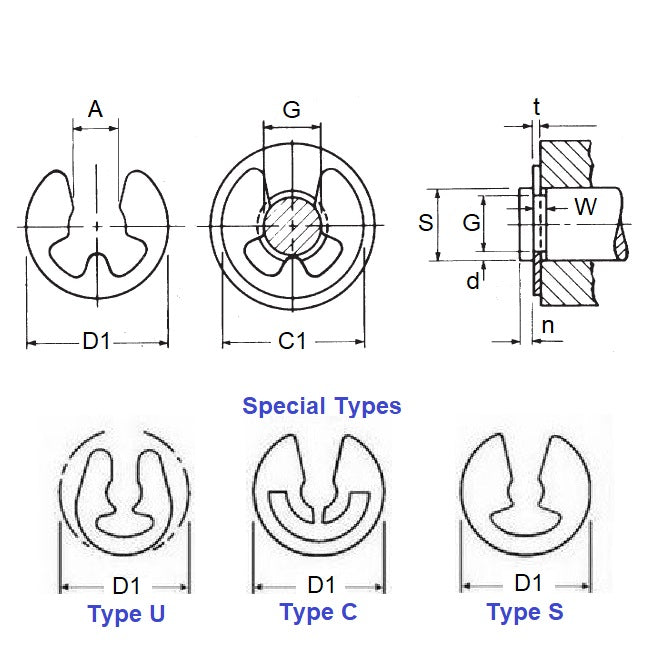

- Minimum Rec. Shaft Dia (S)
:
4.37
mm
+ 1.02 / - 0.00
(Equiv. 0.172 in.) - Groove Dia. (Dg)
3.23
mm
+ 0.051 / - 0.000
(Equiv. 0.127 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.050
(Equiv. 0.025 in.) - Clip OD Loose (D1) 7.92 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 5.39
- Clip OD in groove (C1) 7.93 mm
- Loose Clip ID (A) 3.18 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SE-017
- A9Q29X17
- A9Q29-X17
- SE017
- N1500X017
- N1500-X017
