CS-0400-0035-04-S2-C - Datasheet

MBA

Category Information

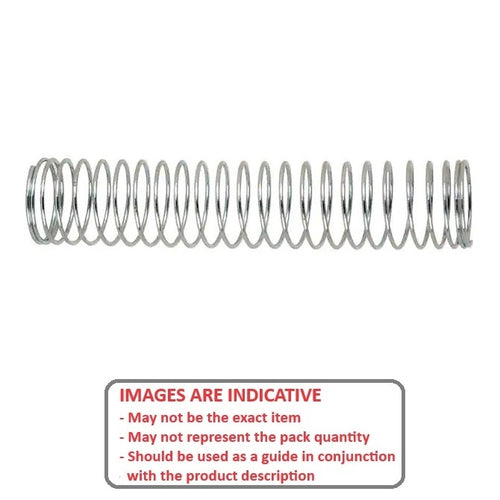

Stainless Steel Compression Springs. 300 gradd stainless steel selection, including 303, 304 and 316. Standard springs may or may not be suplied with ground flush ends.

Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
This category includes short and long lengths.
If the end type is important to your application please contact us for more information or a special quote.

Product Data

Special design for replacement of Kavo 465LN Coupling Spring part number 02018135

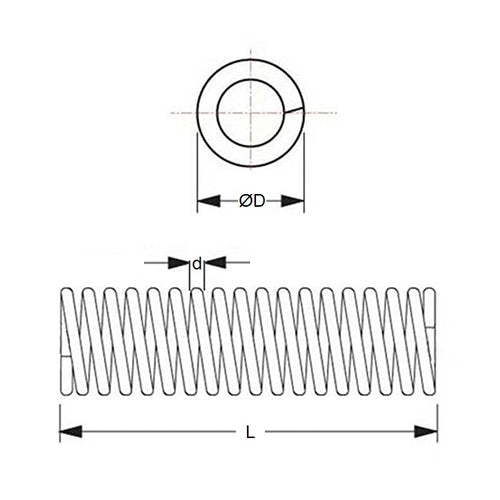

Spring OD (D0) : 4.00 mm _{+/- 0.127}
(Equiv. 0.157 in.)
Free Length (L0) 3.5 mm _{+/- 0.38}
(Equiv. 0.138 in.)
Wire Diameter (d) 0.40 mm _{+/- 0.015}
(Equiv. 0.016 in.)
Solid Height (Sh) 1.40 mm
Approx. ID 3.2 mm
End Type Closed
Max Rod Dia. (A) 3.10 mm
Material Stainless Steel 302/304 (Similar to A2, 18-8)

Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

KaVo 0.201.8135 Kavo
