Miniature Bearings Australia
0T-0040-0030-1000-SS304 - Datasheet
MBA
Category Information

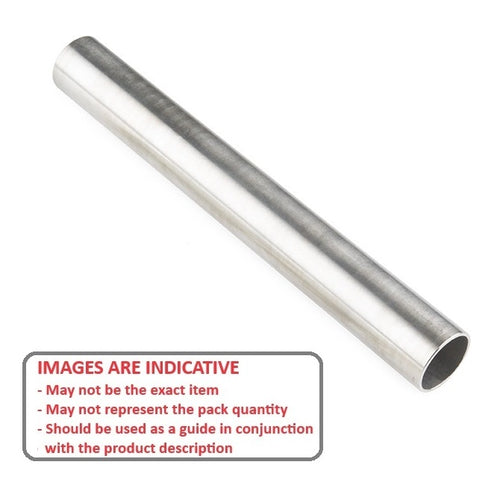

Tube - Round - Stainless SteelStainless Steel Round Tube. Hollow round tubing for general hobby applications.
- Includes K&S Metals range and more
- May be slightly oversized on OD so some reworking might be required before fitting closely mating parts.
- This product is not recommended for use as a bearing shaft.
- We suggest you use items from the category - Shafting - Ground for bearing shaft.
Product Data
- OD (D)
:
4.00
mm
+ 0.10 / - 0.00
(Equiv. 0.157 in.) - ID (d)
3.00
mm
+ 0.00 / - 0.10
(Equiv. 0.118 in.) - Length (L)
1000.0
mm
+ 0.00 / - 0.12
(Equiv. 39.37 in.) - Grade 304
- Material Stainless Steel 303 PV (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Misumi SP100-4
- SP1004
