Miniature Bearings Australia
CC-042-048-SS - Datasheet
MBA
Category Information

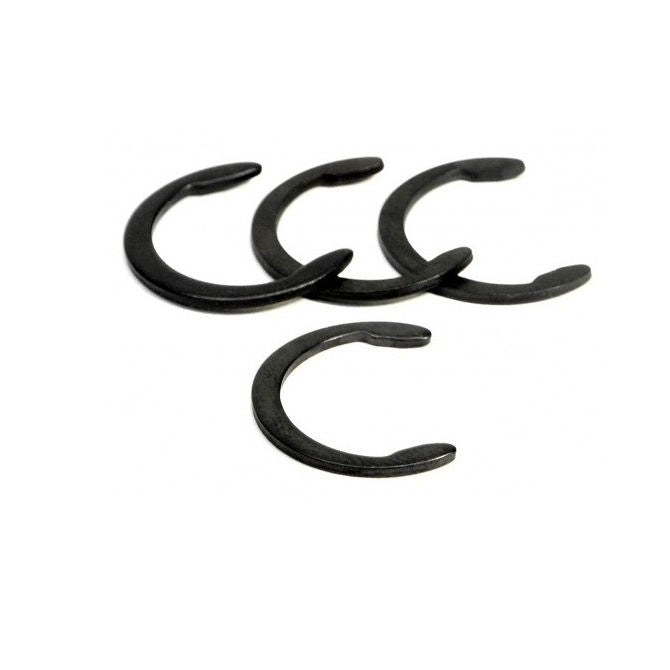

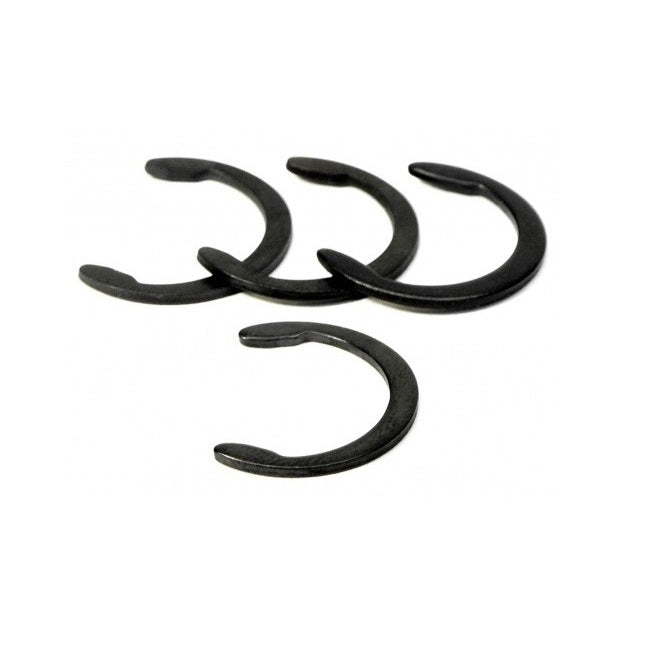

Retaining Rings - CrescentCrescent Retaining Rings. Variation of an E-Clip with an open face. Also known as a C-Clip.
- Narrow section height provides good clearance capabilities.
- Absence of teeth and deep set mean less thrust load ratings than e-clips.
- For best results install using the recommended applicator tool.

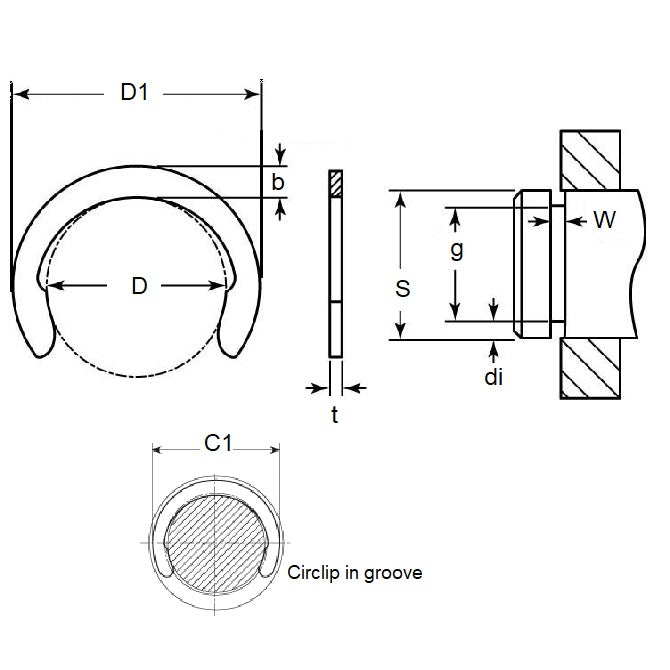

Product Data
- Groove Diameter (G)
:
4.19
mm
(Equiv. 0.165 in.) - Shaft Diameter (S)
4.78
mm
(Equiv. 0.188 in.) - Thickness (t)
0.38
mm
(Equiv. 0.015 in.) - Clip OD in groove (C1) 6.35 mm
- Clip OD Loose (D1) 6.20 mm
- Groove Width (W) 0.46
- Material Stainless Steel Grade PH15-7-17
Product Compliance and Data
Additional Resources
Cross References
- Military 16632-018-SS/B
- Military 16632-018-SS-B
- Waldes 5103-018-SS/B
- Waldes 5103-018-SS-B
- Ellison 9103-018-SS/B
- Ellison 9103-018-SS-B
- NoCor C-018-SS/B
- Rotor Clip C-018-SS/B
- NoCor C-018-SS-B
- Rotor Clip C-018-SS-B
- 16632018SS/B
- 16632018SSB
- 5103018SSB
- 5103018SS/B
- C018SSB
- C018SS/B
- N1800-018-SS-B
- N1800018SSB
- N1800-018-SS/B
- N1800018SS/B
- 9103018SSB
- 9103018SS/B
