SCT0417-032-P-PH-S4 - Datasheet
Brighton Best
Category Information

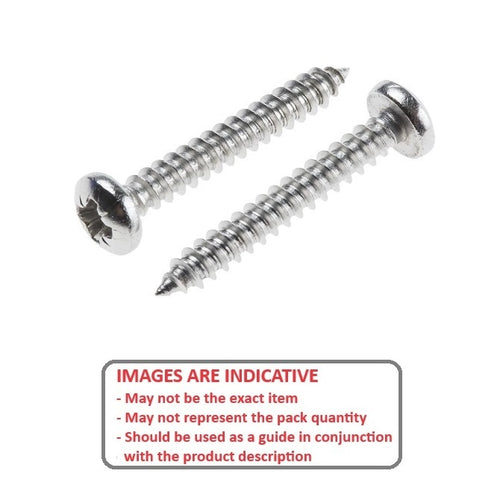

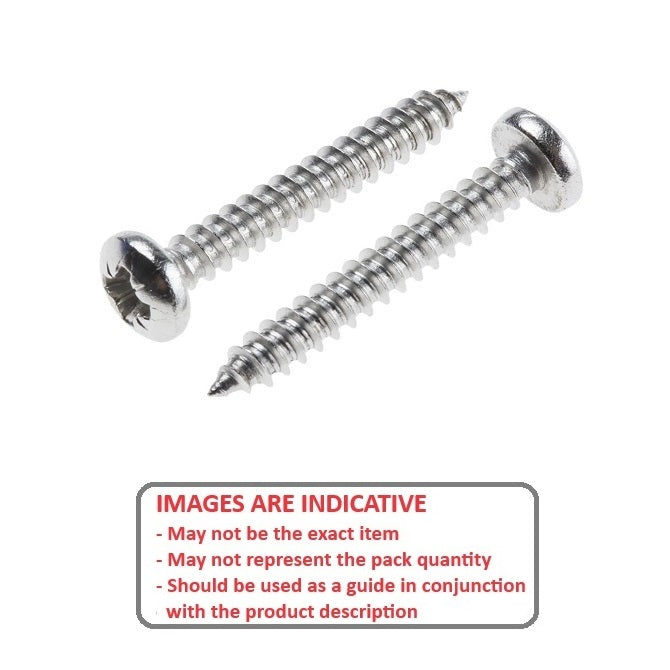

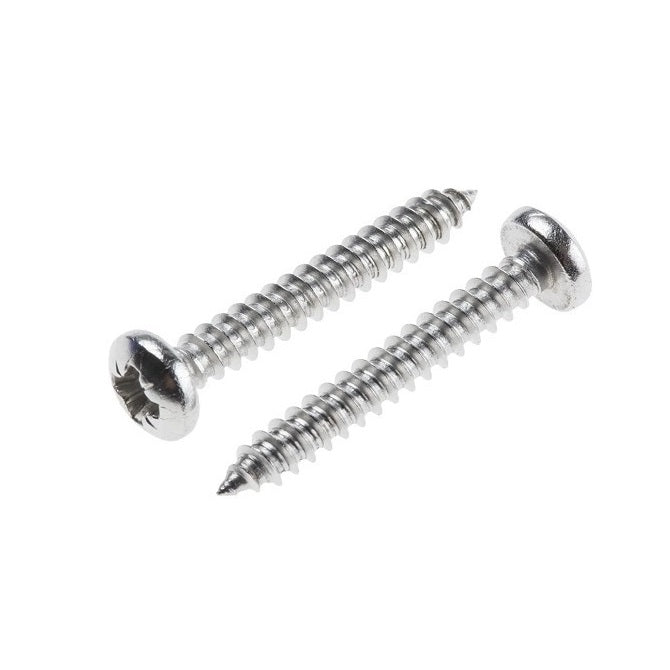

Screws - Self Tapping - Pan Head - 302 - 304 Stainless304 Stainless 302 Pan Head Self Tapping Screws. Type AB Steel Self Tapping Screws.

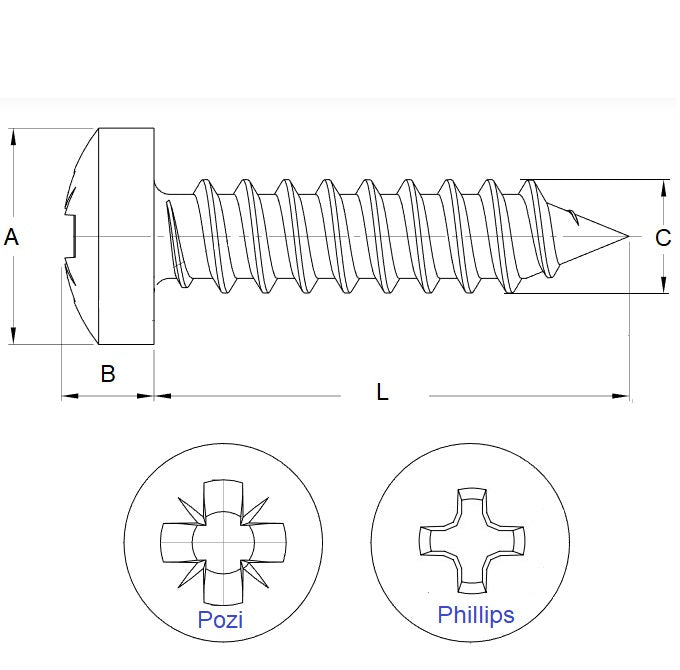

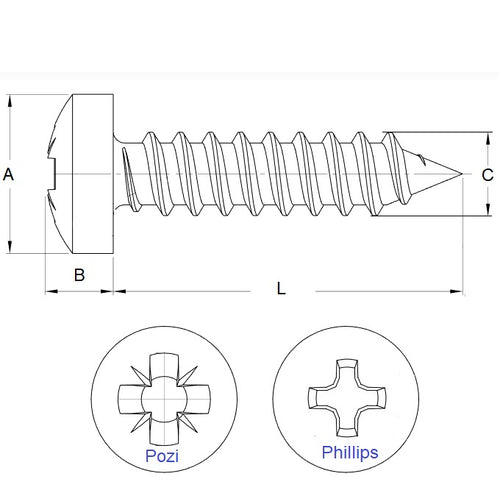

- Length is from the tip of the screw to the base of the head. Ie, does not include the head.
Product Data
- Approx Diameter
:
4.17
mm
(Equiv. 0.164 in.) - Thread Length (L)
31.8
mm
(Equiv. 1.252 in.) - Gauge 8
- Type Pan / Philips
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 678106
- 92470A201
