Miniature Bearings Australia
SCT0417-019-PLH-P-PH-CZ - Datasheet
MBA
Category Information

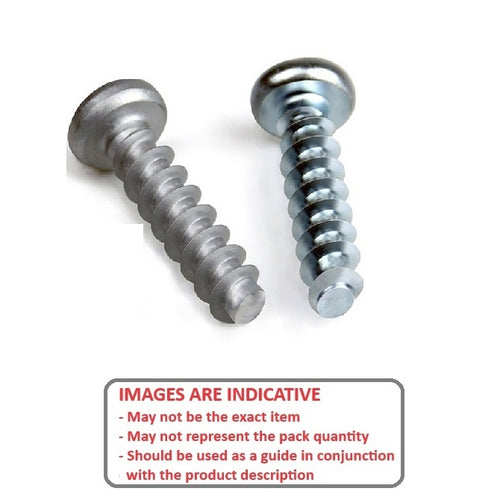

Screws - Self Tapping - Hard or Soft Plastics - Pan HeadPan Head Hard or Soft Plastics Self Tapping Screws. Tri-Lobe Course Thread Plastic Threading Screws
- Thread cutting screws for plastics
- Be sure to select correct screw for hard or soft plastic threadcutting

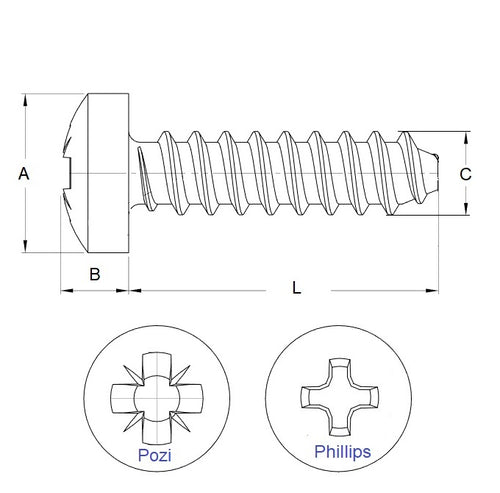

Product Data
- Approx Diameter
:
4.17
mm
(Equiv. 0.164 in.) - Thread Length (l)
19.1
mm
(Equiv. 0.752 in.) - Gauge 8
- Drive Type Phillips
- Type Course Threadcutting For Hard or Soft Plastics
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90380A198
- MicroFast TCPP0812
