ACE1005MRS - Datasheet

ACE

Category Information

Shock Absorbers - Self-Compensating

Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 4.1 mm
      (Equiv. 0.161 in.)
    • Thread (T) M5 Fine (5x0.5mm)
    • Length (A/F) 34.00 / 21.10 mm
      (Equiv. 1.339 in.)
    • Shaft Diameter (D) 1.50 mm
    • Effective Weight 0.10 - 0.09 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ACE-1005M
      • ACE1005M
      View full details

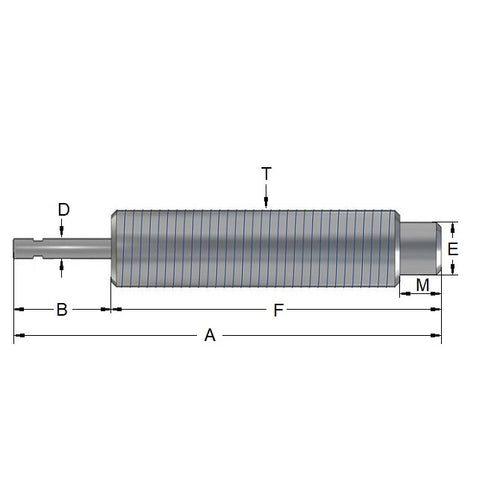

      ACE1005MRSDiagramACE1005MRSImage
