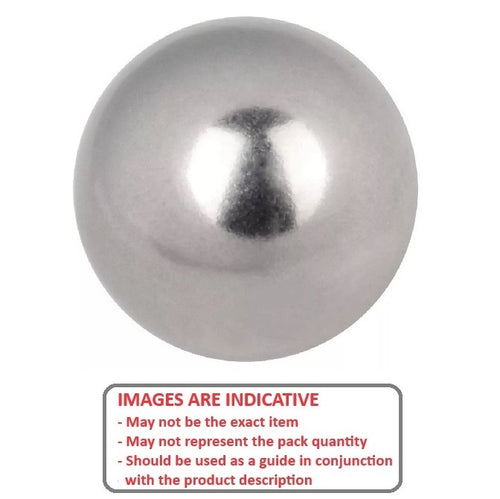

Standard Ti-Gr23 Ti-6Al4V-ELI Titanium Alloy Metallic Balls. Implant Grade can be used for Jewellery and Body Piercing. Grade 23 6Al-4V is a high strength titanium alloy. Tensile Strength 84.5kgf / mm². Yield Strength 77.5kgf / mm². Elongation 10 Percent.

• Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
• General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
• For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.
• Plain
• Composition Percentage: Al 5.5-6.5, V 3.5-4.5, N 0.03, C 0.08, H 0.013, Fe 0.25, O 0.13, Ti Balance
• Grade 23 6Al-4V is a high strength titanium alloy. Tensile Strength 84.5kgf / mm². Yield Strength 77.5kgf / mm². Elongation 10 Percent.
