Miniature Bearings Australia
SHLD040-005-SLL-C - Datasheet
MBA
Category Information

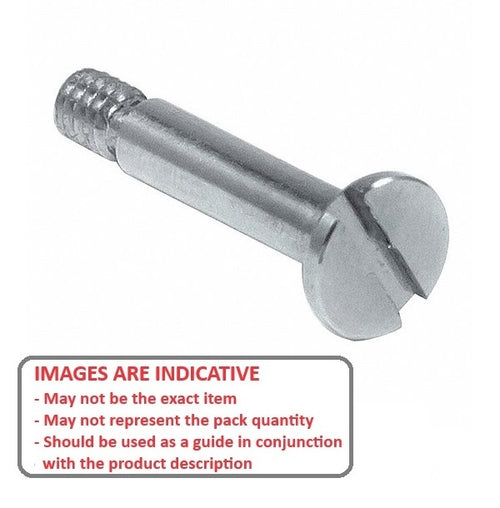

Screws - Shoulder - Slotted Shallow Head - Carbon SteelCarbon Steel Slotted Shallow Head Shoulder Screws. Hardened
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data
- Shoulder Diameter (E)
:
4.000
mm
(Equiv. 0.157 in.) - Shoulder Length (A)
5.000
mm
(Equiv. 0.197 in.) - Thread (D) M3x0.5
- Max. Thread Length (S) 4.50 mm
- Head Height (H) 1.80 mm
- Head Diameter (D) 7.00 mm
- Slotted Drive
- Material Carbon Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 97505A104
- MD0923MCO03X005
