0R-0040-0300-T5O - Datasheet

MBA

Category Information

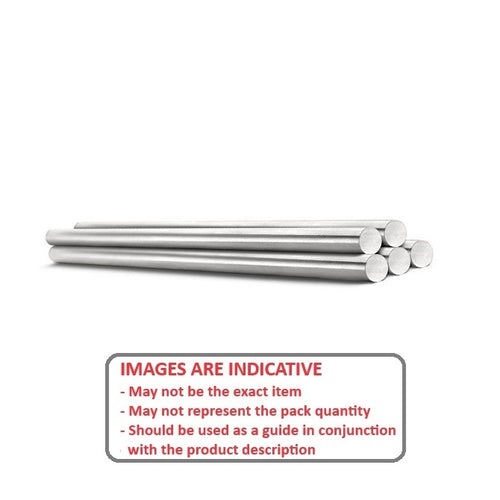

Shafting - Precision Ground - Titanium - High Strength

High Strength Titanium Precision Ground Shafting. Titanium shafting available in oversized and undersized tolerances

  • An expanded range may be available on special order. Please enquire.
  • Used in critical aircraft structural components. UNS R56400.
  • Composition Percentage: Al 5.5-6.75, V 3.5-4.5, N 0.05, C 0.08, H 0.015, Fe 0.40, O 0.2, Ti Balance
  • Grade 5, 6Al-4V, TC4 is a high strength titanium alloy. Tensile Strength 91.5kgf / mm2. Yield Strength 84.5kgf / mm2. Elongation 10 Percent.
  • Shaft with undersized tolerances is suitable for use with precision ground bearings wih inner rings. HRC 36. Surface Finish Ra 0.8-1.6 um. Not suitable for running needle bearings directly.
  • Shaft with oversized tolerances is suitable for pulleys or gears requiring interference fits, or for machining to your required tolerances

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

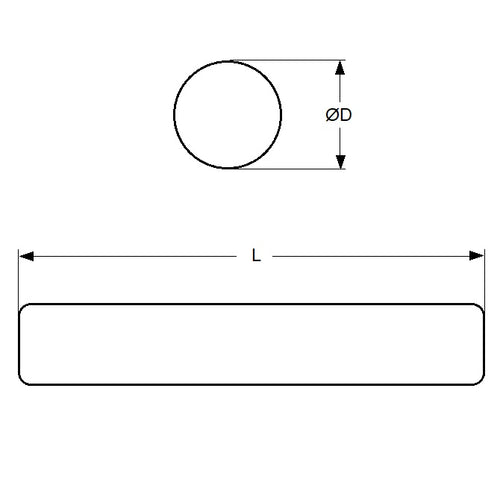

  • Diameter (d) : 4.000 mm + 0.005 / + 0.030
    (Equiv. 0.157 in.)
  • Length (L) 300 mm
    (Equiv. 11.811 in.)
  • Material Ti-Gr5/TC4
  • Ends Chamfered
  • End Colour Code Blue / Black
  • Material Titanium High Strength
Country of Origin: TW
