RCL-040-094-ZD - Datasheet
MBA
Category Information

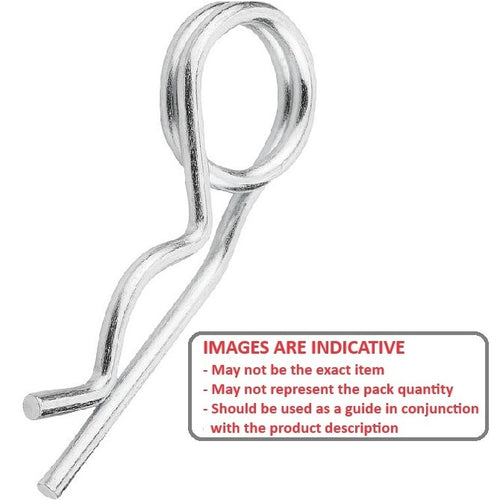

R Clips - Double Coil - SteelSteel Double Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- Material: Spring Wire
Product Data

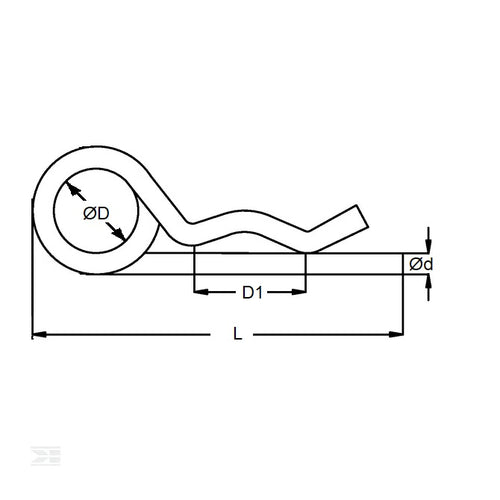

- Wire Thickness (d)
:
4.00
mm
(Equiv. 0.157 in.) - Length (L)
94.0
mm
(Equiv. 3.701 in.) - Material Zinc Plated
- Drill Hole Size 4.50 mm
- Inside Eye Diameter (D) 23.00 mm
- Shaft Size Range 17.00 to 24.00 mm
- Approx. Bridge Length (D1) 30 mm
- Material Carbon Spring Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98335A790
- RPD4-78
- RPD478
