RCL-040-085-Z - Datasheet
MBA
Category Information

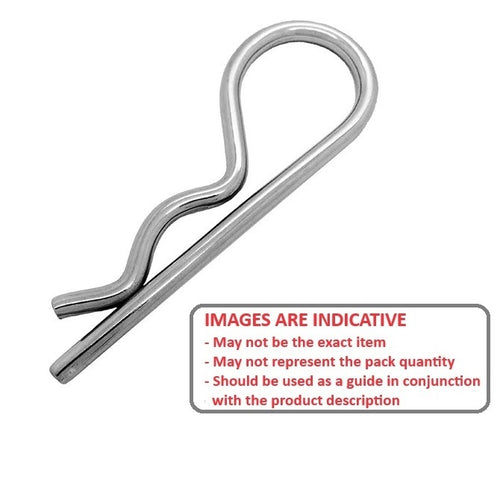

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data

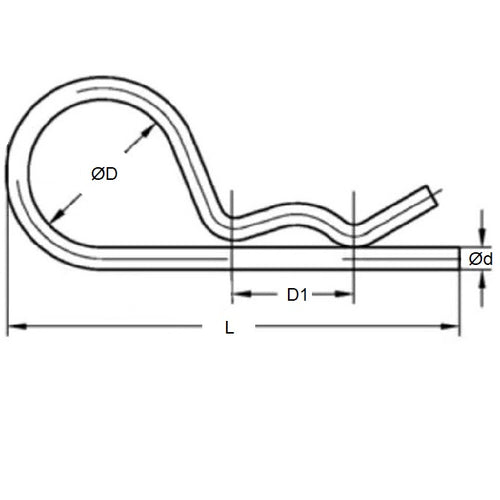

- Wire Thickness (d)
:
4.00
mm
(Equiv. 0.157 in.) - Length (L)
85.0
mm
(Equiv. 3.346 in.) - Material Zinc Plated
- Drill Hole Size 4.50 mm
- Inside Eye Diameter (D) 20.00 mm
- Shaft Size Range 16.00 to 20.00 mm
- Approx. Bridge Length (D1) 27 mm
- Material Carbon Spring Steel Zinc Plated
