Miniature Bearings Australia
W0030-F-006-080-NY - Datasheet
MBA
Category Information

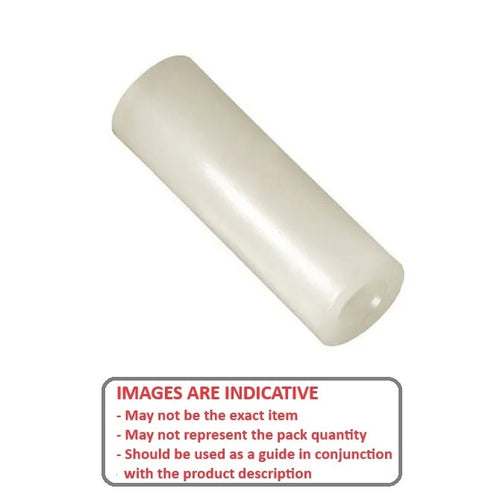

Spacers - Through Bore Round - NylonNylon Through Bore Round Spacers. Shaft spacers - Nylon
- An expanded range may be available on special order. Please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

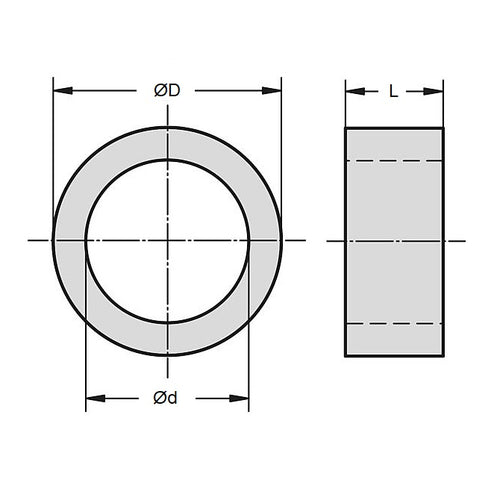

- ID (d)
:
3
mm
+ 0.2 / - 0.0
(Equiv. 0.118 in.) - OD (D)
6
mm
(Equiv. 0.236 in.) - Length (L)
8
mm
+ / - 0.15
(Equiv. 0.315 in.) - Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
Cross References
- 93657A011
- PLN38
- PLN3-8
