FMR63A-2RS-MC3-M33L - Datasheet
MBA
Category Information

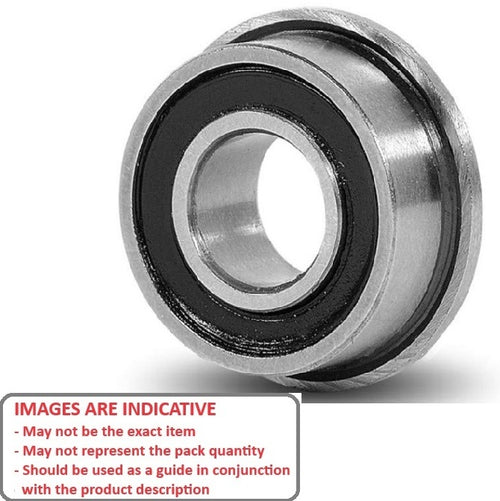

Bearings - Single Row Ball - Flanged - Precision - Chrome SteelChrome Steel Precision Flanged Single Row Ball Bearings. Chrome Steel Bearings with Flanges.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- Miniature sizes from 1mm to 10mm bore and larger sizes to over 50mm bore.
Product Data

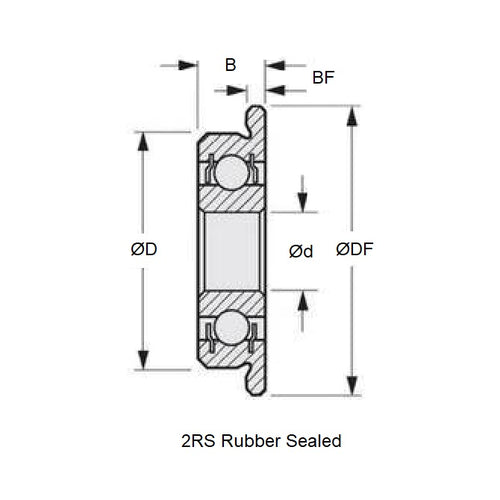

- ID (d)
:
3.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.118 in.) - OD (D)
6.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.236 in.) - Width (B)
2.500
mm
+ 0.000 / - 0.125
(Equiv. 0.098 in.) - Flange Diameter (DF) 7.200 mm
- Flange Width (BF) 0.600 mm
- Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Radial Flanged
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name M33L Dow Corning 33L
- Basic Part FMR63A
- Limiting Speed 48280
- Cage Type Crown
- Static Load Rating KGf 7.5
- Dynamic Load Rating KGf 21
- Radii 0.10 mm
- Inner Shoulder (UI) 3.70mm
- Outer Shoulder (UO) 5.40 mm
- Number of Balls 8
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type 2RS
- Max Temperature 80 Deg. C
