CP-030-050-11-020-R-3G-P - Datasheet
MBA
Category Information

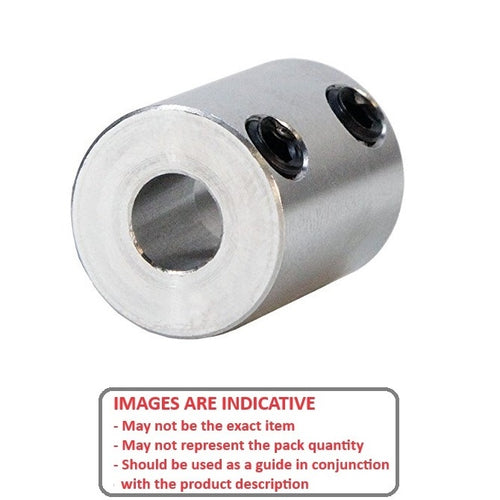

Couplings - Rigid - Set ScrewSet Screw Rigid Couplings. 0.35 to 5.1 Nm. Includes steel, stainless steel, brass and aluminium.
- An expanded range may be available on special order. Please enquire.
- Quality Class Precision: Bore Tolerance +0.013 / - 0.000 concentric within 0.0127mm T.I.R.
- Quality Class Commercial: Bore Tolerance +0.051 / -0.000.
Product Data
- Bore (b1)
:
3.000
mm
+ 0.05 / - 0.0
(Equiv. 0.118 in.) - Bore (b2)
5.000
mm
+ 0.05 / - 0.0
(Equiv. 0.197 in.) - OD (D)
11.00
mm
(Equiv. 0.433 in.) - Length (L) 20.00 mm
- Bore Depth (B) 10.00 mm
- Quality Class Precision

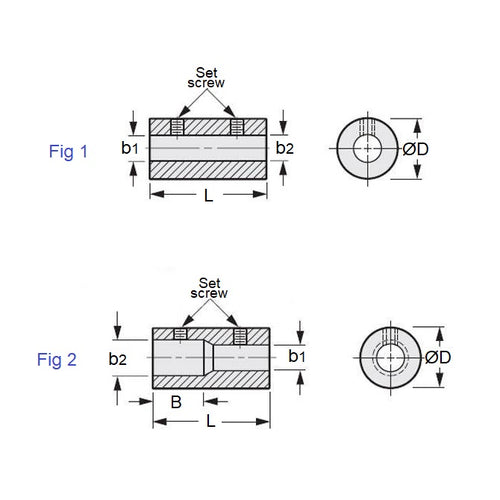

- Figure Fig. 2 M3
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- A5X9M0305
