K-0300-0300-1000A-3 - Datasheet
ExaktKey
Category Information

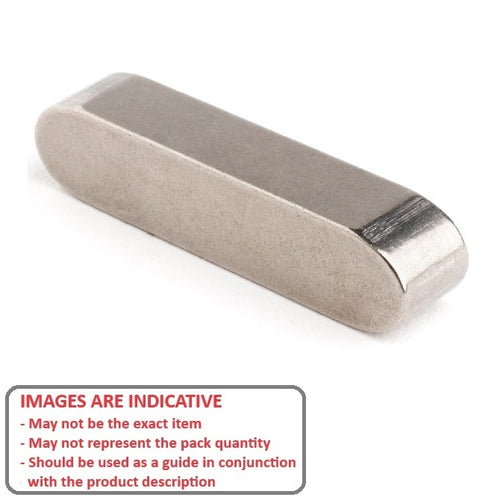

Keys - Machine - Stainless SteelStainless Steel Machine Keys. Form A has rounded ends. Form B has square ends. Form AB has one end rounded and one end square. DIN6885
- An expanded range may be available on special order. Please enquire.
Product Data
- Width (W)
:
3.00
mm
+ 0 / - 0.051
(Equiv. 0.118 in.) - Height (h)
3.00
mm
+ 0 / - 0.051
(Equiv. 0.118 in.) - Length (L)
10.00
mm
+/ - 0.25
(Equiv. 0.394 in.) - Tolerance Type Standard Undersized
- End Type A (Rounded Ends)
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor 720303-010
- 720303010
